MelisAI

React back-office for the MelisAI suite — connect providers, design agents, deploy instances, watch usage, inspect MCP servers, and chat from anywhere. Package melisplatform/melis-ai.

Purpose

MelisAI is the back-office management layer of the MelisAI suite. It does not run AI models itself — that is the role of melis-ai-engine and its provider modules. It provides the UI and services to wire up the whole AI system: connect a provider (Platform AI), build behaviours (AI Agents with scenarios and tool allow-lists), deploy them as named Instances, monitor Usage, debug with a raw-payload chat (Chat Dev Tool), and inspect connected MCP servers.

In the React back-office (/melis-react) MelisAI ships a single multi-brick bundle exposing three native-React menu tools — Admin, AI Agents, MCP Inspector — each with a New / Old toggle to its legacy tool in an iframe, plus a global AI Assistant overlay (a floating chat button on every screen, no menu entry). AI logic stays server-side in melis-ai-engine.

Enable it

Add to config/melis.module.load.php (provider modules must be listed before MelisAI):

return [
    'MelisAIEngine',
    'MelisAIEngineClaude',   // Anthropic provider
    'MelisAIEngineGemini',   // Google provider
    'MelisAI',
];

MelisAI requires melisplatform/melis-ai-engine, which owns all melis_ai_* database tables and the agent/scenario runtime. Provider modules (melis-ai-engine-claude, melis-ai-engine-gemini, -ollama, -oci) implement the provider contract and must be installed for their respective companies.

The four core nouns

Noun	Table	Key column	Description
model	melis_ai_models (mam_*)	mam_generative_model	A provider model row: company (Anthropic / Google), model string, API-key link, default flag, file-upload settings.
agent	melis_ai_agents (maa_*)	maa_agent_tools (JSON allow-list)	A behaviour: name, agent code, optional model override, ordered scenario steps, allow-list of tools.
instance	melis_ai_instances (mai_*)	mai_instance_id	A named deployment of an agent. The mai_instance_id string is the stable key every UI references (e.g. mainchatassistantgeneral, aitoolcreator).
tool	melis_ai_tools (mat_*)	—	A callable function the model may invoke. Either MCP (external MCP server, mcp: true) or Local (built-in PHP).

One-sentence mental model: an instance points at an agent, an agent points at a model, a model names a company — that picks the provider; a chat on the instance runs the agent's scenario, calling the agent's allowed tools.

Where it lives in the React back-office

MelisAI ships one brick bundle (public/ui-react/brick.js) whose manifest declares a bricks: [...] array — four registrations self-registering in brick.tsx:

Brick id	Route	melisKey	Kind
ai-admin	/melis-ai/admin	melisadmin_tool	native React tab shell (Usage / Platform AI / Instances / MCP Server / Chat dev tool)
ai-agents	/melis-ai/ai-agents	melisagent_tool	native React list + editor (sub-tabs)
mcp-inspector	/melis-ai/mcp-inspector	melis_mcp_inspector_tool	native React (single function)
ai-assistant	(none)	—	Overlay — the global floating chat FAB, no route, no menu entry

The three routed tools appear in the left menu under Melis AI (alongside AI Tool Creator, contributed by the separate melis-ai-tool-creator module). The assistant is rendered once at the shell root so the floating chat survives navigation. All appear only when MelisAI is active (brick discovery via GET /melis/react-api/react-modules). Every menu tool carries a New / Old toggle: New = the React UI, Old = the classic tool in an iframe.

Admin — configure the AI

Route /melis-ai/admin. A native React tab shell — Usage · Platform AI · Instances · MCP Server · Chat dev tool — with a single Save (saves the active tab) and a whole-tool New/Old toggle.

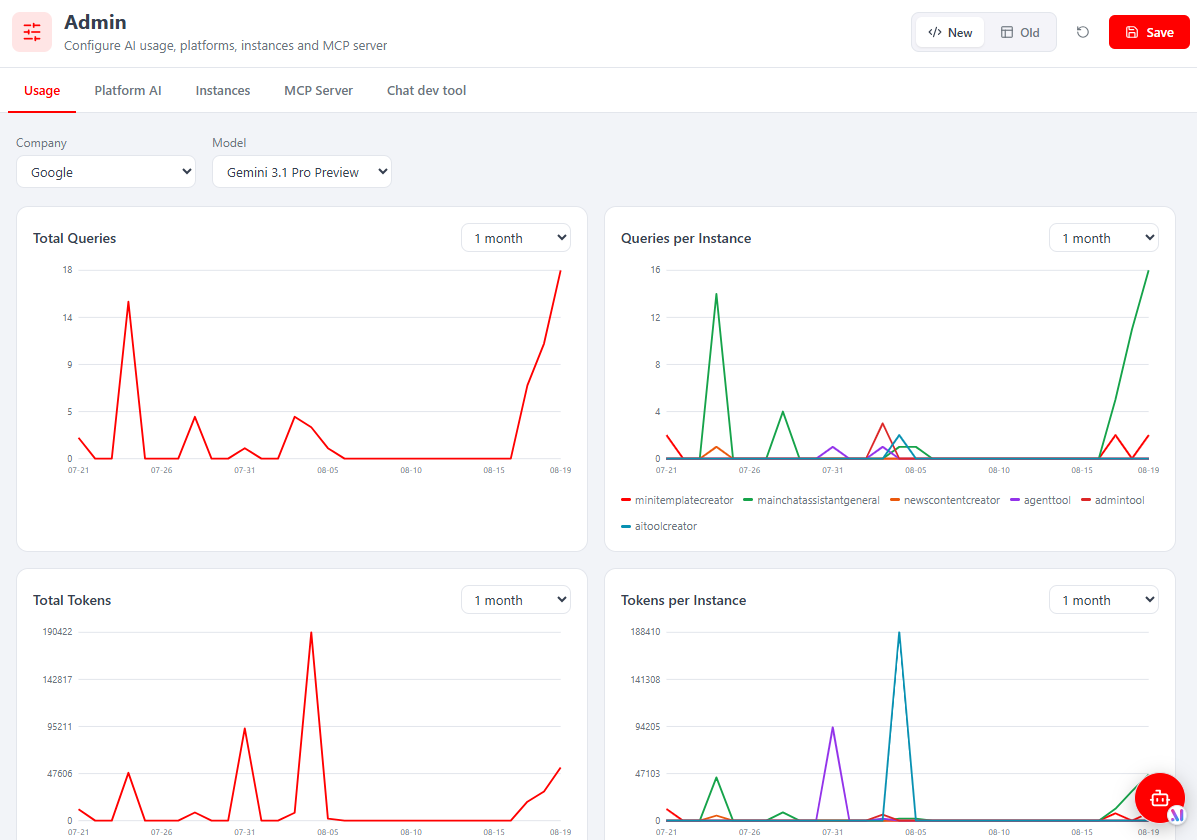

• Usage — filter by Company/Model over a range; four charts: Total Queries, Queries per Instance, Total Tokens, Tokens per Instance (per-instance series are your deployed instances). Backed by melis_ai_daily_usage.

• Platform AI — switch the AI on: pick Company + Model, choose Same key for all platforms or One key per platform, paste the key(s), set Status: Active + Default model: Yes. Plus Upload management — user/context file toggles and Upload mode: File API vs Embed in request (the mam_file_upload_mode providers read; Gemini defaults to File API, Claude to embed) and max file size.

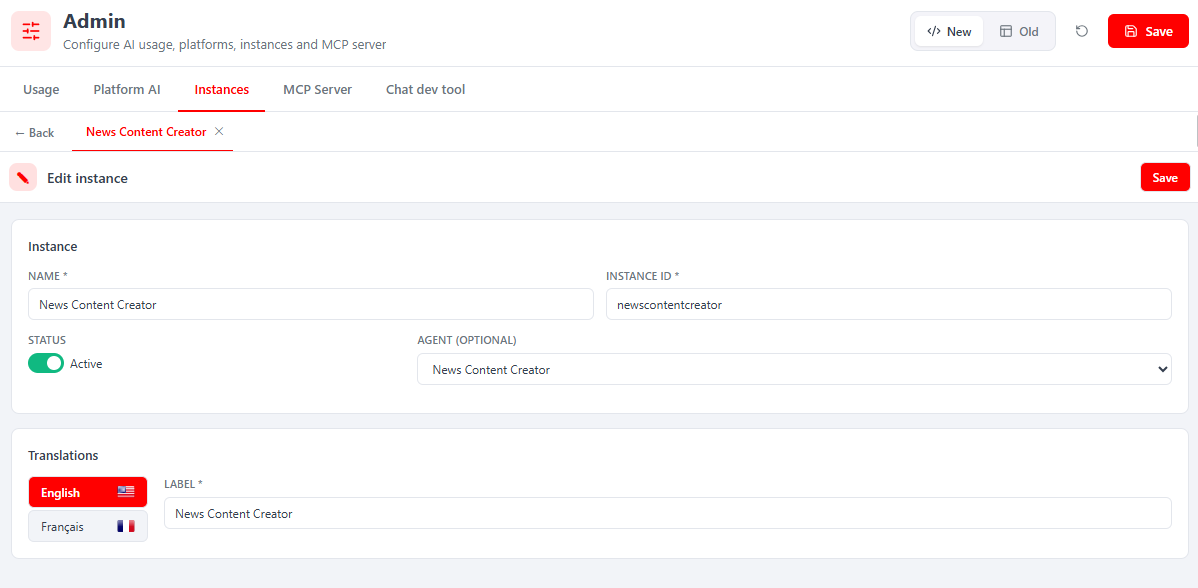

• Instances — KPI cards (Total / Active / Inactive), search, filters and + New instance. Six ship out of the box: three system instances (edit-only, no delete: admintool, agenttool, mainchatassistantgeneral) and three app instances (deletable: aitoolcreator, minitemplatecreator, newscontentcreator). Editing opens a sub-tab form: Name, Instance ID (the mai_instance_id), Status, Agent (optional) and a per-language Label.

• MCP Server — two sub-tabs: MCP Exposition (tick which MCP functions the MCP server exposes to clients) and a DB / sensitive tables tab; each has its own Save.

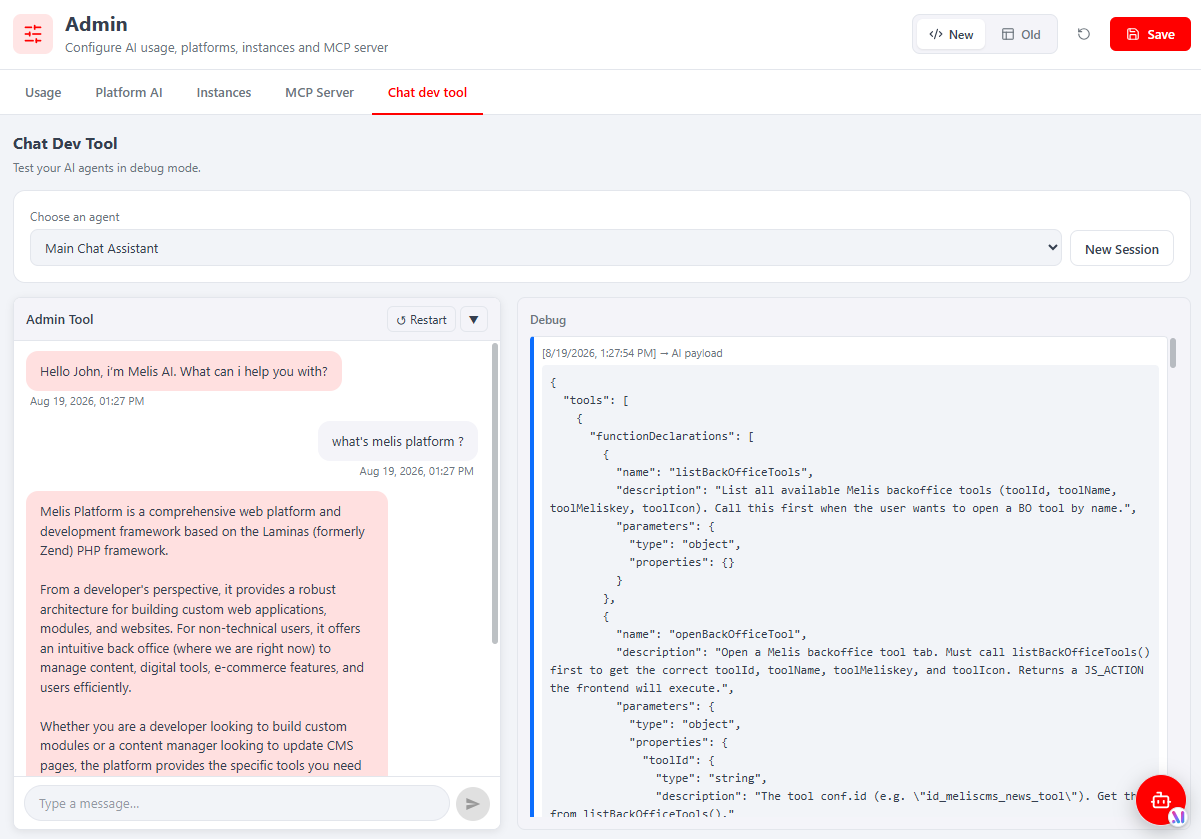

• Chat Dev Tool — a debugging chat: pick an agent, chat, and read the exact raw AI PAYLOAD (tools / functionDeclarations, context) and AI RESPONSE JSON side by side.

AI Agents — design the behaviour

Route /melis-ai/ai-agents. The list shows ID / Status / Name / Entries / Call number (Entries = scenario steps, Call number = lifetime AI calls) with KPI cards, search, filters and Export. Opening an agent adds a sub-tab with a five-tab editor and a single Save.

Tab	Purpose

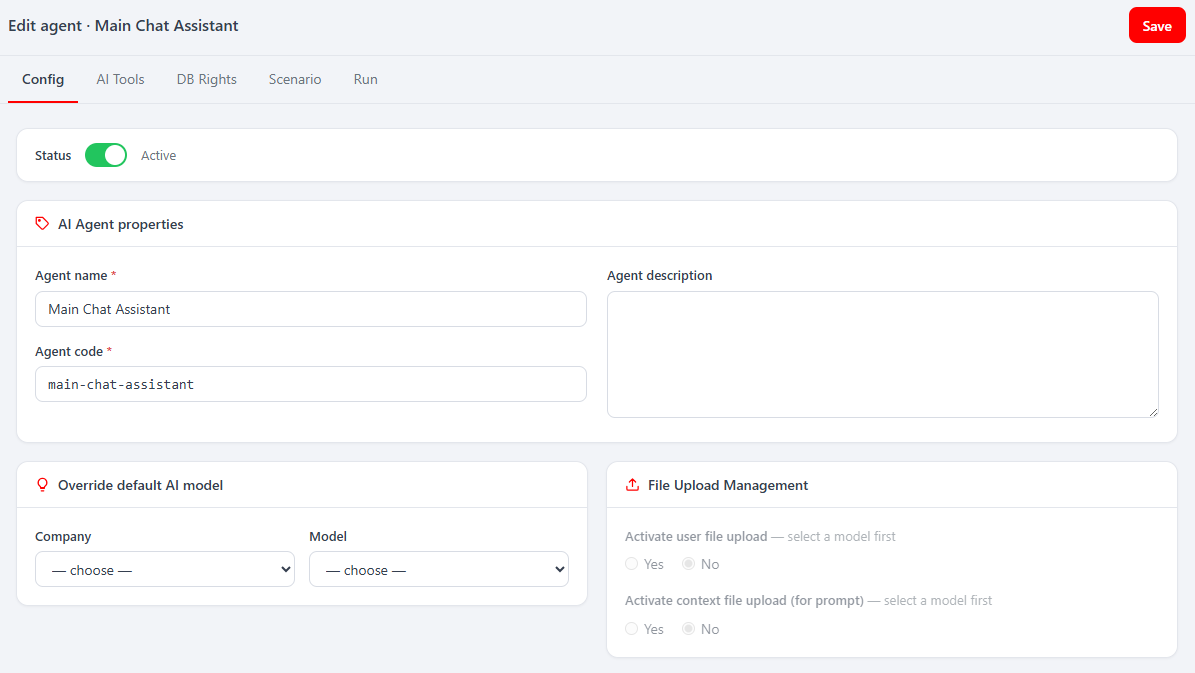

Config	Agent name, agent code (stable slug), description, Override default AI model (Company + Model), file-upload toggles, Active switch.
AI Tools	The capability allow-list — tick the tools this agent may call, grouped MCP tools (served by MCP servers) and Local tools (built-in PHP). The engine offers exactly the ticked tools to the model.

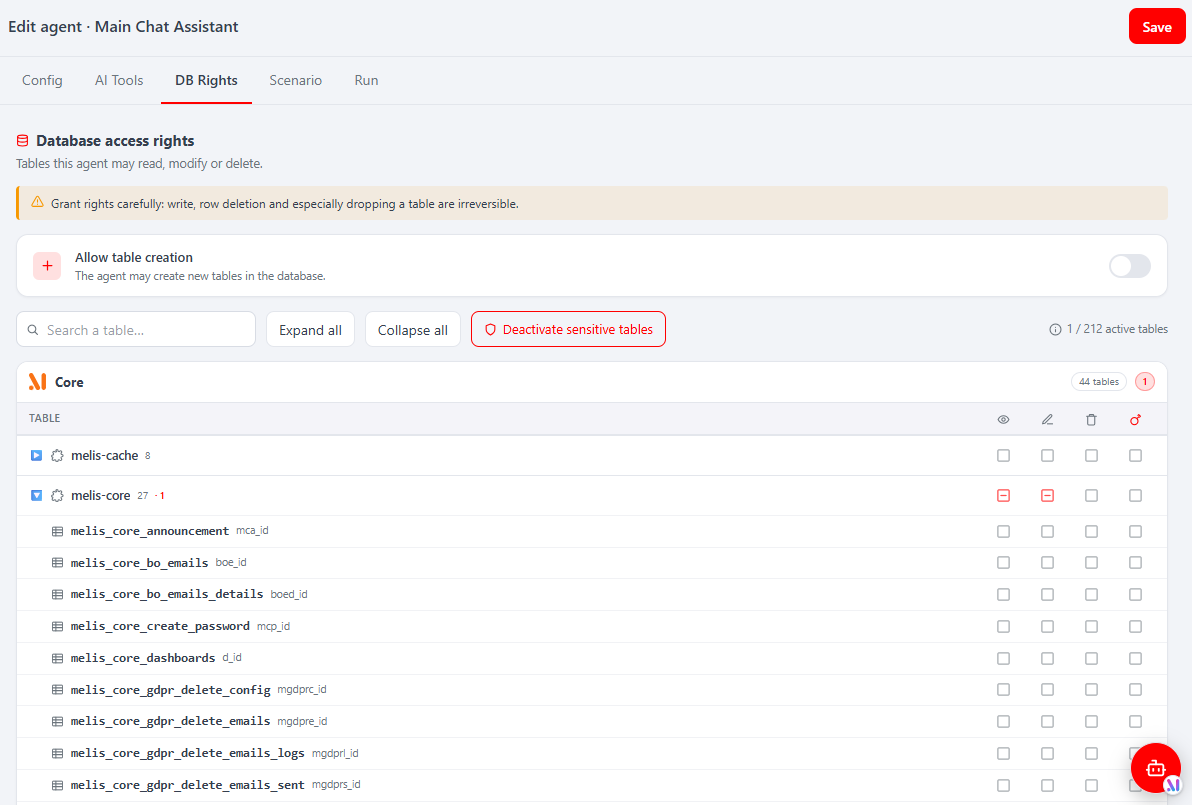

DB Rights	Per-table read / write / delete row / drop checkboxes grouped by module, a global Allow table creation switch, sensitive-table handling, search and Expand/Collapse all.

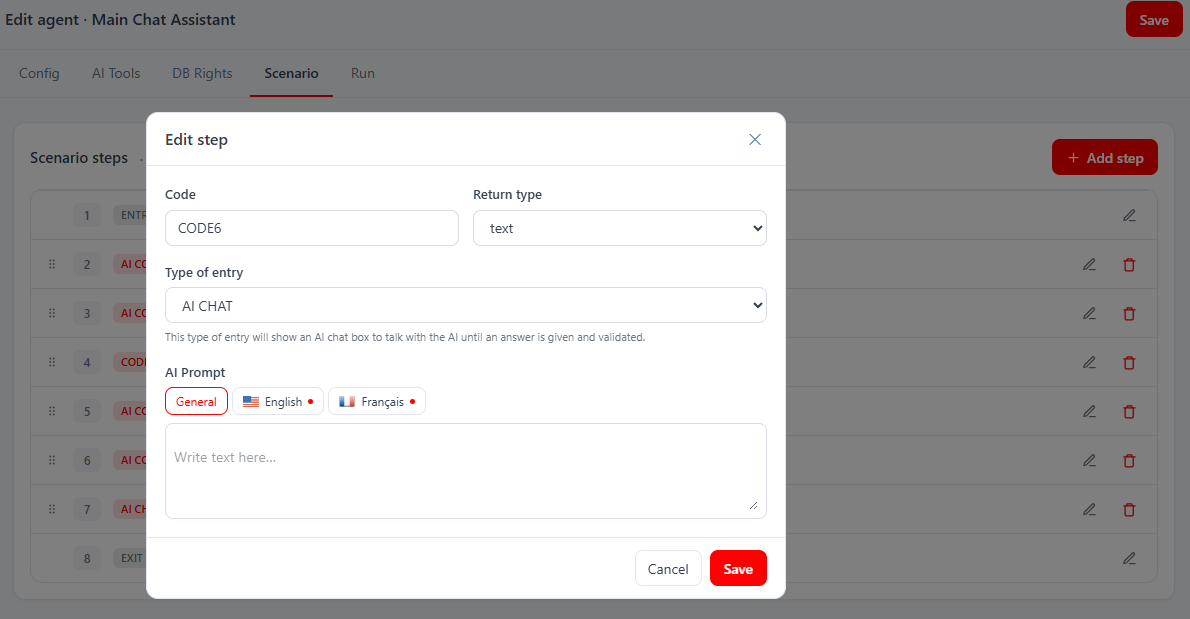

Scenario	Ordered typed steps with drag-to-reorder and per-row edit/delete: ENTRY PARAMS → AI CONTEXT (silent) → AI CHAT (visible) → EXIT PARAMS, plus optional CODE steps. Each step has a Code you reference with [CODE] to pull a prior step's answer. Editing a step opens a modal (Code, Return type, Type of entry, AI Prompt with a General editor + per-language overrides).

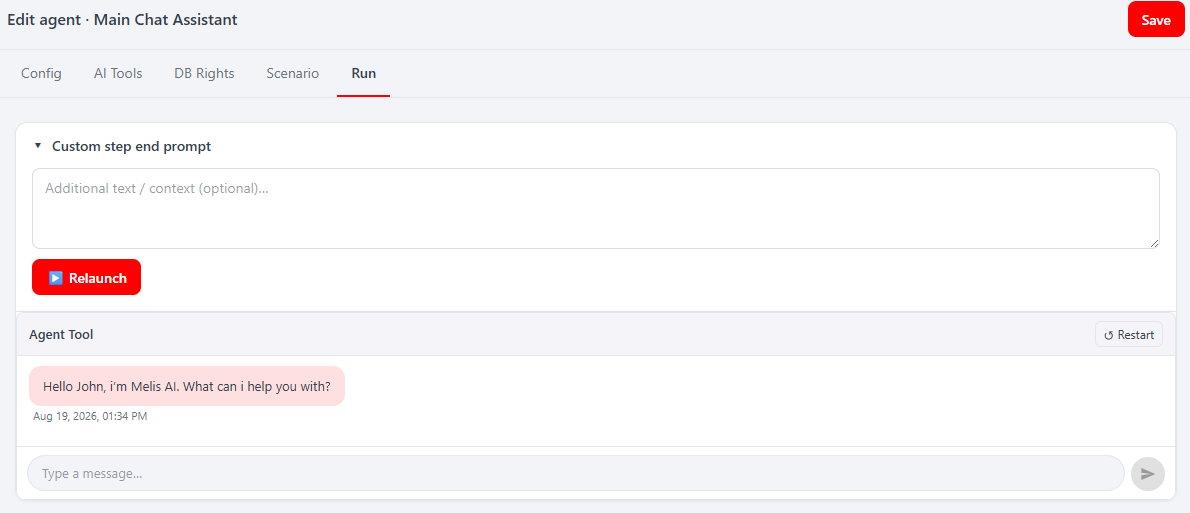

Run	An in-place test chat against the agent (with an optional Custom step end prompt), running the same native chat as the assistant.

Shipped tool catalogue

Group	Tools
MCP — DB schema/data	getTableStructure, createDatabaseTable, addDBTableColumns, updateDBTableColumns, dropDBTableColumns, selectData, insertData, updateData, deleteData, bulkInsertData
MCP — filesystem	createFile, createDirectory, pathExists, readFile, updateFiles, deleteFile, deleteDirectory
MCP — site/mini-template (CommunityExtensions)	readSiteAssets, getSitePublicUrl, uploadMinitemplateImages, renderMinitemplatePreview
MCP — module builder (ToolCreator)	createModule, activateModule, deactivateModule, generateBundle
Local	activate_module

MCP Inspector

Route /melis-ai/mcp-inspector. A native React page (with New/Old toggle) that lists the connected MCP servers and lets you launch / check status / read logs — to confirm a server is up and its tools are discoverable before allowing them on an agent. Backed by the engine's MelisAIEngineMcpService.

AI Assistant — chat from anywhere

The floating AI Assistant button (bottom-right, on every screen) opens a chat panel running the general Main Chat Assistant (agent id 1, instance mainchatassistantgeneral). It can drive the back-office (open a tool, open a page) from the conversation, dispatched host-side via window.melisReactActionMap. Minimise keeps the session, New session starts fresh, Close ends it.

React API — endpoints

There is no config/react-api.php: the react-api routes are declared inline in config/module.config.php, grafted onto the melis-react-api parent route (prefix /melis/react-api). Controllers live in src/Controller/React/MelisReactApiAi*Controller.php. Contract everywhere: { success, data } on OK, { success:false, error } on failure; every fetch sends X-Requested-With: XMLHttpRequest + credentials.

Each controller rolls its own access guard (not the generic trait):

private const MELIS_KEY = 'melisadmin_tool'; // or melisagent_tool / melis_mcp_inspector_tool
if ($deny = $this->denyUnlessAccess()) { return $deny; }
//   → 401 if !isAuthenticated() ; else 403 unless MelisCoreRights::canAccess(self::MELIS_KEY)

Surface (guard)	Representative endpoints (/melis/react-api/…)
Admin (melisadmin_tool)	ai-usage/bootstrap · ai-usage/charts · ai-platform/data · ai-instances/{bootstrap,stats,list,save,:id,delete/:id} · ai-mcp-server/{data,save-tools,save-sensitive} · ai-chat-dev/{agents,run,continue}
AI Agents (melisagent_tool)	agents (list) · agents/{stats,options,:id,save,delete/:id,db-rights/:id} · agents/scenario/{list,options,step/:id,…}
MCP Inspector (melis_mcp_inspector_tool)	mcp-inspector/{servers,launch,status,log}

Scenario writes reuse the legacy /melis/MelisAI/AgentProperties/* endpoints (delete / reorder / save) so all validation, file-handling and code-uniqueness stays server-side. Example (from agent-api.ts):

const BASE = '/melis/react-api/agents'
await apiFetch<{ id: number }>(`${BASE}/save`, {
  method: 'POST',
  headers: { 'X-Requested-With': 'XMLHttpRequest', 'Content-Type': 'application/json' },
  credentials: 'same-origin',
  body: JSON.stringify({
    id: 4, name: 'Tool Builder', code: 'aitoolcreator', modelId: null, status: 1,
    dbCanCreateTable: 1, tools: ['createModule', 'activateModule'],
    dbRights: { melis_cms_page: { read: true, write: false, delete_row: false, drop: false } },
  }),
})

Capabilities (advanced rights)

Declared in config/react.capabilities.php under melisReactToolCapabilities, keyed by each tool's rights-bearing melisKey. Default-allow, declarative only: they drive the checkboxes in Users → Rights and gate which React tabs/actions show (useCaps(melisKey).can(cap)); they are not enforced server-side (controllers gate only on tool access via canAccess).

• melisadmin_tool — granularity per tab (usage, platform_ai.edit, instances + create/edit/delete, chat_dev, mcp_server with nested tools.edit / db.edit).
• melisagent_tool — tool-level CRUD (list/create/edit/delete) plus editor tabs (general, tools, dbrights, scenario + CRUD, run).
• melis_mcp_inspector_tool — declares nothing; access is the single menu tool-access checkbox.

The chat UI dependency

Every chat surface (the assistant overlay, the Agent Run tab, the Admin Chat Dev Tool) renders <AiChatContainer> imported from @melis-ai-engine — a Vite alias to ../../melis-ai-engine/ui-react/src, so the chat component is bundled from melis-ai-engine sources into this brick (not externalised). Key props: maiInstanceId, agentId, autoRun, showHeader, clearSession, extraEntryParams.

For developers embedding a chatbox in a legacy / server-rendered view, melis-ai-engine still provides the AIChatViewHelper($maiInstanceId, …) view helper — see the legacy MelisAI page and melis-ai-engine.

Chat flow (what happens on send)

1. A chat surface posts user turns to the engine for the given mai_instance_id.
2. MelisAIEngineAgentService::runAgent() resolves instance → agent → model, then picks the provider via getActiveModelClass($company, $modelId, $agentId) (company Google → Gemini, Anthropic → Claude).
3. The engine walks the agent's scenario steps in order; MelisAIEngineModelService::send() calls the AI API; tool calls route via MelisAIEngineMcpService (JSON-RPC for MCP tools, direct PHP call for Local tools).
4. State persists to melis_ai_conversation_state; token/call counts to melis_ai_daily_usage.

MelisAI never calls the AI APIs itself — the engine and provider modules do.

Extension pattern (how app modules plug in)

1. dbdeploy inserts an agent (with scenario + tool allow-list) and an instance with a fixed mai_instance_id.
2. Register an MCP server under config['mcp']['servers'] and declare its tools in function_declarations with mcp: true.
3. Add a UI entry that opens a chat on <mai_instance_id> with the right entry/exit params.

Database tables

MelisAI owns no schema of its own — all tables are installed by melis-ai-engine. Prefix is melis_ai_*.

Table	Holds
melis_ai_models (mam_*)	Provider model rows (company, model string, API-key link, file-upload settings).
melis_ai_companies (macp_*)	Company definitions (Google, Anthropic, …).
melis_ai_platform_keys (mapk_*)	Provider API keys.
melis_ai_agents (maa_*)	Agent definitions (code, model override, maa_agent_tools JSON allow-list).
melis_ai_agents_tools (maat_*)	Agent-to-tool join.
melis_ai_tools (mat_*)	Tool catalogue (MCP / Local).
melis_ai_instances (mai_*)	Named deployments (stable mai_instance_id).
melis_ai_instance_trans (mait_*)	Per-language instance labels.
melis_ai_scenario_steps (mas_*)	Ordered scenario steps per agent.
melis_ai_scenario_steps_datas (massd_*)	Step data (context text, form path, …).
melis_ai_scenario_steps_datas_entryexit (masse_*)	Entry/exit param definitions per step.
melis_ai_return_types (mart_*)	Exit return type definitions.
melis_ai_files (maf_*)	Files attached to scenario steps.
melis_ai_daily_usage (mau_*)	Token and query usage counters.
melis_ai_conversation_state (macs_*)	Per-user conversation state.

See also: melis-ai-engine · melis-ai-engine-claude · melis-ai-engine-gemini · melis-ai-tool-creator · melis-ai-community-extensions
