MelisCmsCategory2

Multi-site, multilingual content categories for the CMS, with a native React back-office — package melisplatform/melis-cms-category2.

Purpose

MelisCmsCategory2 provides a hierarchical category system in the Melis backoffice. Categories form a tree (each node points to a parent), carry per-language translations (name and description), can be scoped to one or more sites, have a validity window and a status, and can hold media files. The module ships a front-office templating plugin to render a category tree on a page and a reusable category picker embedded by other modules (e.g. News, Commerce) to classify their records.

In the v6 React back-office (/melis-react) the tool ships as a native full-React brick: a real master-detail UI — category tree on the left, tabbed editor on the right — reading and writing through its own react-api JSON layer. A New / Old toggle can fall back to the legacy tool in an iframe. The underlying data model, services and front plugin are unchanged from v5.

Enable it

Add to config/melis.module.load.php:

return [
    'MelisCmsCategory2',
];

Requires melis-core and melis-cms. The module is dbdeploy-enabled so its tables are created on deploy. melis-engine is needed for front rendering. The React brick appears in the sidebar only while the module is listed here (modular brick discovery).

Back-office (React)

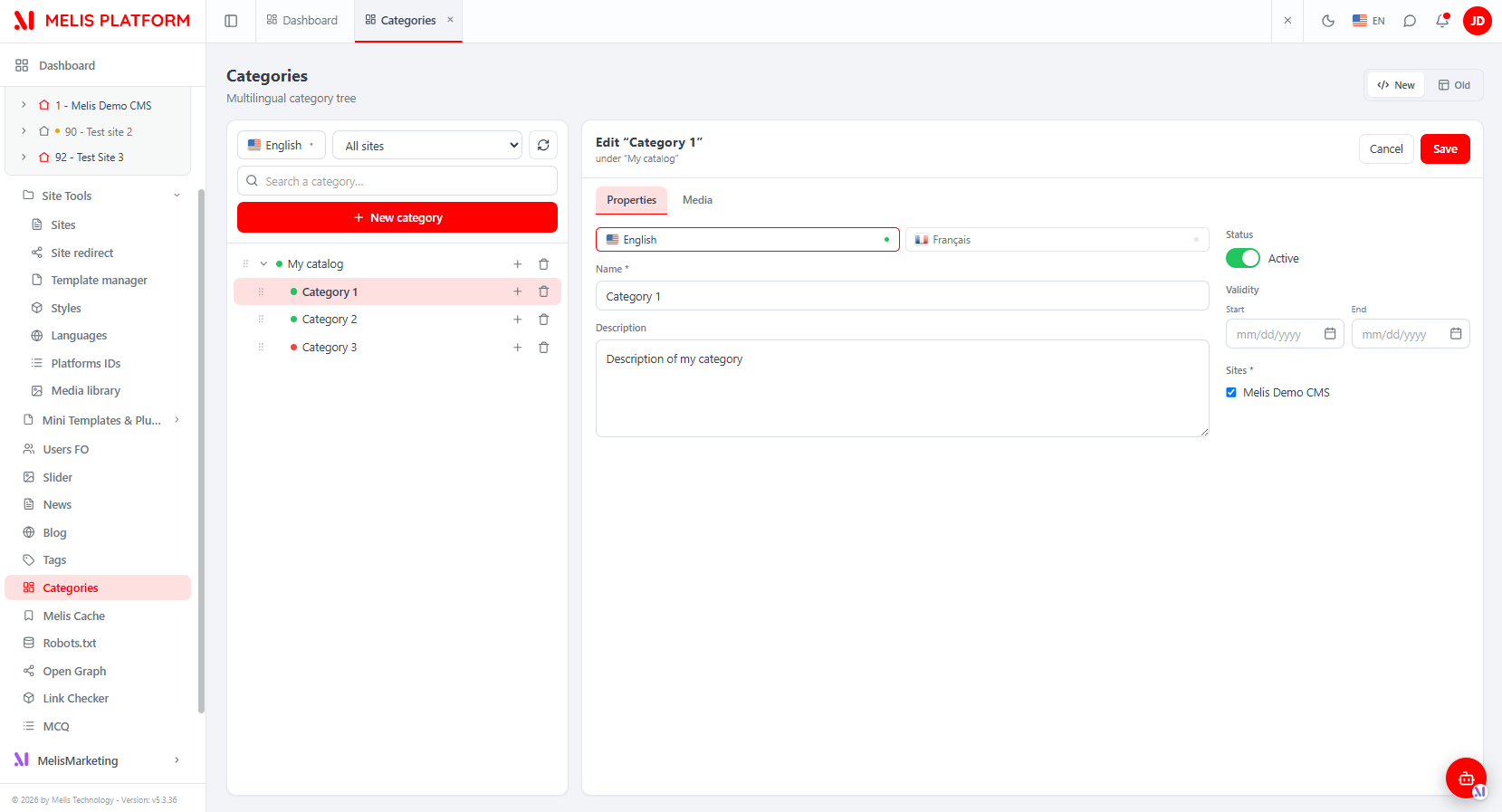

Where: left sidebar → MelisCms group → Categories (Catégories). It opens as a single master-detail page — not the multi-tab slider — at route /melis-cms/category-v2. The New / Old toggle top-right switches between the React UI (default) and the classic tool in an iframe.

Category tree (left pane)

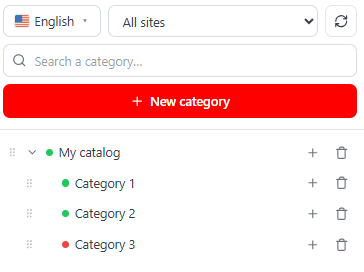

The left column shows the whole tree. Its toolbar has a language dropdown (flags — picks which language node names are shown in), a site filter, a refresh button, a search box (prunes but keeps ancestors), and + New category (creates a root/catalog). Each row shows a status dot (green = active, red = inactive), the node name, and — on hover — a + (add a sub-category) and a trash (delete). Drag a node's grip to reorder or re-parent it: near the top edge = drop before, bottom edge = drop after (sibling), middle = drop inside (last child). Drag is offered only in the full unfiltered view. A node with sub-categories cannot be deleted.

Editor (right pane)

Selecting a node — or clicking + New category / a row's + — loads the editor. The header shows the title, its context ("at the root" or "under «parent»"), and Cancel / Save.

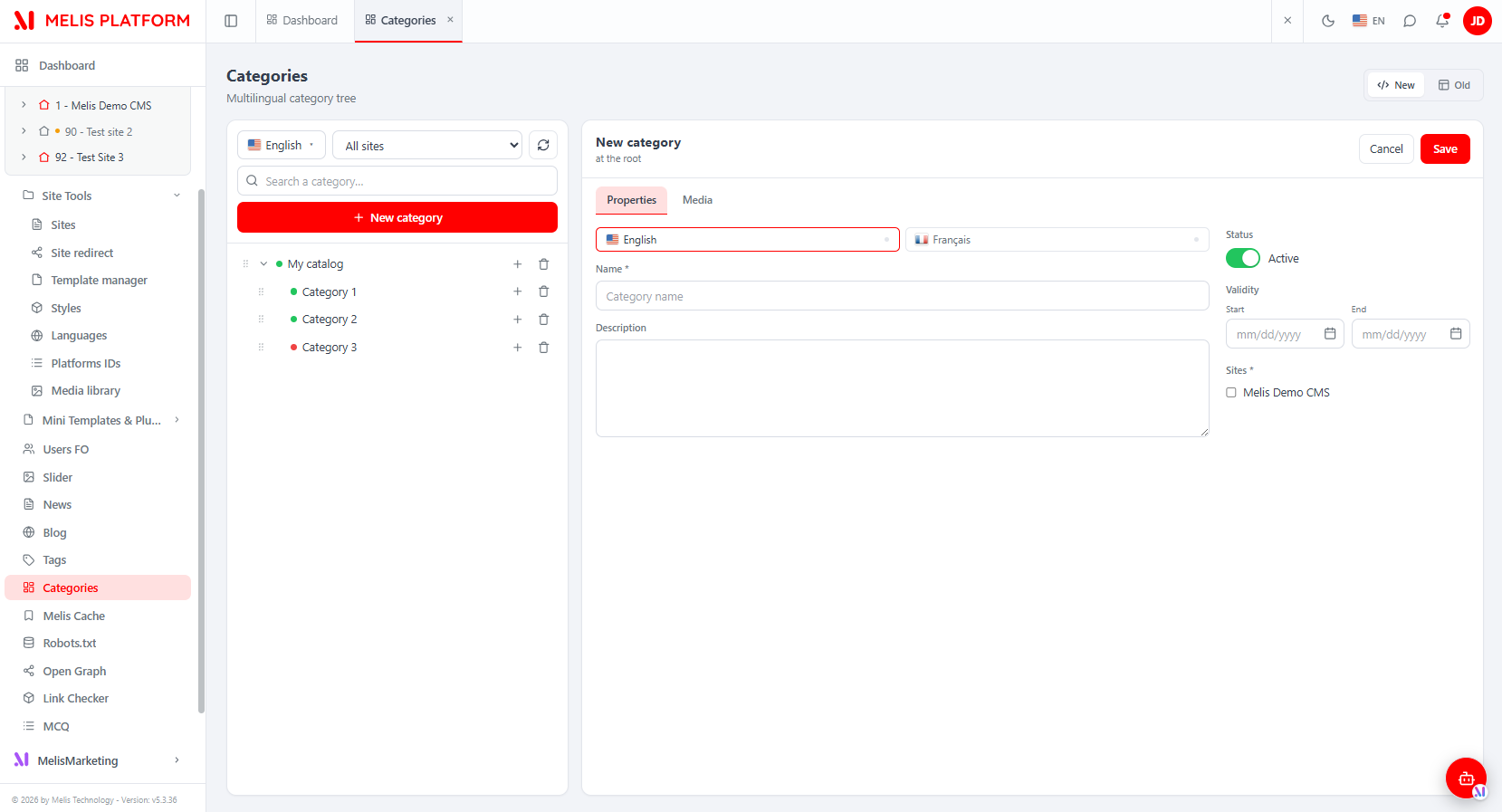

• Properties tab — per-language Name and Description (language tabs with a filled/empty dot per language), a Status toggle, Validity dates (Start / End), and the Sites the category belongs to. Name (in at least one language) and at least one Site are required; if both dates are set, Start must precede End.

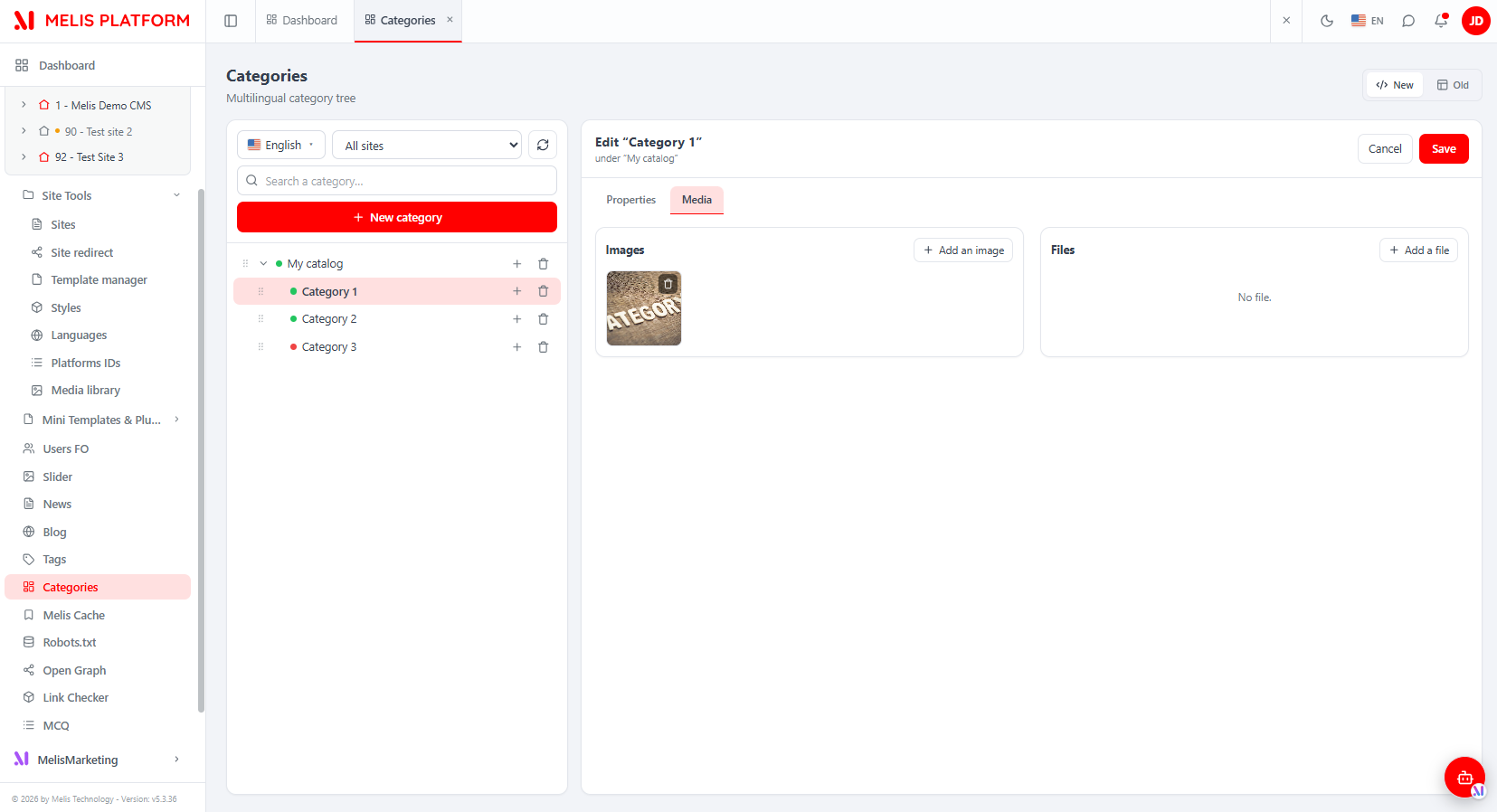

• Media tab — attach Images and Files (two columns, each with + Add and per-item delete). Save the category first before adding media.

React API

Routes live in config/react-api.php, served by MelisCmsCategory2\Controller\MelisCmsCategoryReactApiController, nested under the module's back-office base so the effective prefix is /melis/MelisCmsCategory2/react-api. Every response follows the { success, data, error } contract. The controller talks to the tables directly via parameterised SQL, reproducing the legacy business rules (name in ≥1 language, ≥1 site, start ≤ end, order auto = max+1, -1 = root father, no delete of a node with children, cascade-delete of trans/sites/media, hardened media upload).

Method & URL (relative to base)	Purpose
GET /tree?lang=	Full category tree → {langId, nodes:[TreeNode]} (name resolved to lang, fallback flagged)
GET /langs	CMS languages → {langs:[{id,locale,name}]}
GET /sites	Sites (filter + form) → {sites:[{id,name}]}
GET /category/:id	One category → {id,parentId,status,dateStart,dateEnd,sites,translations}
POST /save	Create / update a category → {id}
DELETE /delete/:id	Delete a category (blocked if it has children) + re-sequence siblings
POST /reorder	Resequence siblings of a parent ({parentId, orderedIds:[…]}) — also re-parents
GET /category/:id/media	Category media → {images:[MediaItem], files:[MediaItem]}
POST /media/upload	Multipart upload (catId, type image|file, file) → {id,type,path,name}
DELETE /media/delete/:id	Delete a media row + its file on disk

Capabilities

Declared in config/react.capabilities.php under the rights-bearing node melis_cms_category_v2_tools_section (this is also the controller's MELIS_KEY — not the manifest zone key melis_cms_categories_v2, which only targets the Old iframe). Every controller action guards access with canAccess(MELIS_KEY). Capabilities::flatten() turns the tree into dotted strings passed to makeCan(...) in React:

Capability	Gates
tree.create	"+ New category" and per-node "+" buttons
tree.order	Drag-reorder handle (also requires the unfiltered view)
tree.delete	Per-node trash
edition	Loading the editor for an existing category (creation stays allowed)
edition.properties	Properties tab
edition.media	Media tab

The brick

The UI is authored in ui-react/ (Vite IIFE, React / ReactRouter externalised to host globals, output to public/ui-react/brick.js beside brick.manifest.json). brick.tsx registers one routed component under brick id category2.

{
  "id": "category2",
  "route": "/melis-cms/category-v2",
  "label": "Catégories",
  "forwardKey": "MelisCmsCategory2/MelisCmsCategoryList",
  "melisKey": "melis_cms_categories_v2",
  "entry": "brick.js",
  "persistent": true
}

Component	Role
CategoryPage.tsx	Container: loads langs + sites, (re)loads the tree per language, owns the selected node and the New/Old mode, renders the master-detail layout + the Old iframe
CategoryTree.tsx	Left pane — tree, language dropdown, site filter, search, per-node add/delete, drag-reorder / re-parent
CategoryEditor.tsx	Right pane — Properties + Media tabs, client validation, inline/banner errors
ViewToggle.tsx	New (React) / Old (iframe) toggle
category-api.ts	Typed API client for the endpoints above

The host discovers the brick via GET /melis/react-api/react-modules and mounts it; useNavMenu maps the forwardKey to the tree route. The brick reads the active language from document.documentElement.lang and ships an in-file {fr,en} dictionary. Business logic stays server-side (parity with the legacy tool); React is presentation + API calls.

Key services

Service alias	Role
MelisCmsCategory2Service	Main category service: create/read category nodes, tree retrieval, translations and site links.
MelisCmsCategory2MediaService	Per-category file storage on disk and in the database.

Notable methods on MelisCmsCategory2Service:

• getCategoryTreeview($fatherId, $langId, $onlyValid, $siteId) — recursive tree.
• getCategoryById($categoryId, $langId, $onlyValid) — full category node.
• getCategoryNameById($categoryId, $langId) — name lookup.
• getCategoriesPerSite($siteId, $langId), getFirstLevelCategoriesPerSite($siteId, $langId).
• saveCategory(...), saveCategoryTexts(...), saveCategorySites(...) — persist node/translation/site.
• reOrderCategories($parentId, $currentOrder) — persist drag-reorder.
• validateDates($dateStart, $dateEnd).

MelisCmsCategory2MediaService handles the filesystem side: uploadFile, deleteFile, getMediaFilesByCategoryId, getFilesInDir, removeCategoryDir.

The React react-api controller uses direct SQL rather than these services, but the front plugin and the reusable category picker still call MelisCmsCategory2Service.

Front office

• Templating plugin MelisCmsCategoryDisplayCategoriesPlugin — renders a category tree on a page. Its config exposes one Properties tab with three fields: template_path, site_id, category_start. Default template: MelisCmsCategory2/default. In the React page editor, drop the Display Categories block and set the template, starting category (tree picker) and site.
• View helper renderTreeRec — recursively renders a category tree array inside a view.

Hardcoded usage:

$display = $this->MelisCmsCategoryDisplayCategoriesPlugin();
echo $display->render([
    'template_path' => ['MelisCmsCategory2/default'],
    'site_id'        => 1,
    'category_start' => 1,
]);

Database tables

Table	Holds
melis_cms_category2	Category node: cat2_id, cat2_father_cat_id, order, status, reference, validity dates, audit.
melis_cms_category2_trans	Per-language translation: name and description, keyed by catt2_id.
melis_cms_category2_sites	Category-to-site link, keyed by cats2_id.
melis_cms_category2_media	Media attached to a category: catm2_type, catm2_path, catm2_cat_id.

A seed root node (cat2_id = 1, "My catalog" / "Mon catalogue") is inserted on install.

Key files

Concern	Path
React API routes + invokable controller	vendor/melisplatform/melis-cms-category2/config/react-api.php
React capabilities declaration	vendor/melisplatform/melis-cms-category2/config/react.capabilities.php
React API controller (10 actions, direct SQL, upload hardening)	vendor/melisplatform/melis-cms-category2/src/Controller/MelisCmsCategoryReactApiController.php
React brick (Vite IIFE)	vendor/melisplatform/melis-cms-category2/ui-react/ and built public/ui-react/
Brick manifest	vendor/melisplatform/melis-cms-category2/public/ui-react/brick.manifest.json
Main service	vendor/melisplatform/melis-cms-category2/src/Service/MelisCmsCategoryService.php
Media service	vendor/melisplatform/melis-cms-category2/src/Service/MelisCmsCategoryMediaService.php
Templating plugin	vendor/melisplatform/melis-cms-category2/src/Controller/Plugin/MelisCmsCategoryDisplayCategoriesPlugin.php
Install SQL	vendor/melisplatform/melis-cms-category2/install/sql/

See also: melis-cms, melis-core, melis-cms-news
