MelisCommerce

Full e-commerce framework for MelisPlatform — catalog, customers, cart/checkout/orders, coupons, shipping and SEO — with a React back-office. Package melisplatform/melis-commerce.

Purpose

MelisCommerce adds a complete commerce layer to a Melis site: a catalog (products, variants, attributes, categories, prices, stock), a B2B customer model (accounts + contacts), the cart/checkout/order pipeline, coupons, currencies, shipping, returns, documents and SEO. It ships a back-office management suite and a front-office shop built from droppable templating plugins. The data layer uses 59 melis_ecom_* tables, 26 services, 10 rich entities and 33 listeners; data access uses Eloquent (bundled illuminate/database), wrapped by Melis-style event-driven services.

In Melis v6 the business logic is unchanged; the display layer is a React back-office (/melis-react). MelisCommerce ships one multi-brick bundle exposing 13 native React tools, each backed by JSON endpoints under /melis/react-api/…. Every tool keeps a per-tool New / Old toggle so you can fall back to the classic legacy screen in an iframe.

Enable it

Add to config/melis.module.load.php:

return [
    'MelisCommerce',
];

Requires melisplatform/melis-core. Database tables are provisioned automatically by MelisDbDeploy (deltas under install/dbdeploy/); the module is offered by the Melis installer as an optional component. The React tools appear in the back-office only when MelisCommerce is active (discovery via GET /melis/react-api/react-modules).

The React back-office — one bundle, thirteen tools

The bundle (public/ui-react/brick.js + brick.manifest.json) declares 13 tools that self-register in brick.tsx. All are native full-React; each renders a shared ViewModeToggle + LegacyFrame, so Old mounts the classic tool in an iframe (/melis/react-tool-page?key=<melisKey>). The seven "entity" tools set subTabs: true (opening a record adds a sub-tab); all 13 are persistent.

Brick id	Route	Label	melisKey
commerce-accounts	/melis-commerce/clients-list	Accounts	meliscommerce_clients_list_page
commerce-contacts	/melis-commerce/contact-list	Contacts	meliscommerce_contact_list_page
commerce-catalog	/melis-commerce/categories	Catalogs	meliscommerce_categories_page
commerce-products	/melis-commerce/product-list	Products	meliscommerce_product_list_container
commerce-orders	/melis-commerce/order-list	Orders	meliscommerce_order_list_page
commerce-coupons	/melis-commerce/coupon-list	Coupons	meliscommerce_coupon_list_page
commerce-attributes	/melis-commerce/attribute-list	Attributes	meliscommerce_attribute_list_page
commerce-countries	/melis-commerce/country-list	Countries	meliscommerce_country_list_container
commerce-languages	/melis-commerce/language-list	Commerce languages	meliscommerce_language_list_container
commerce-currencies	/melis-commerce/currency-lists	Currencies	meliscommerce_currency_conf
commerce-order-status	/melis-commerce/order-status-lists	Order status	meliscommerce_order_status_tool_page
commerce-clients-groups	/melis-commerce/clients-group-list	Client's groups	meliscommerce_clients_group_tool_container
commerce-settings	/melis-commerce/settings	Commerce settings	meliscommerce_settings_page

Rule of thumb: build the catalog (attributes → catalogs → products/variants), manage customers (accounts + contacts), then run the order pipeline (orders + checkout wizard + coupons), all backed by the commerce reference lists.

Object model

Concept	What it is
Product	A container for variants — not itself a sellable unit.
Variant	The sellable unit: has its own SKU, stock and price. A product with no real options still has one main variant.
Attribute	A filterable/variant-defining property (e.g. Color, Size) with typed, translatable values. Products declare which attributes they use; each variant picks one value per attribute.
Price	Resolved for a (countryId, groupId) pair with VAT; falls back gracefully (see Pricing resolution).
Account	A B2B organisation (melis_ecom_client); has a company record, group and addresses.
Contact / Person	An individual (melis_ecom_client_person) who logs in; can belong to multiple accounts.
Basket	Anonymous (keyed by clientKey) or persistent (tied to an account); merges on login.
Order	Created at status -1 (temporary) during checkout; moves to 1 (New order) after payment.

Accounts & contacts

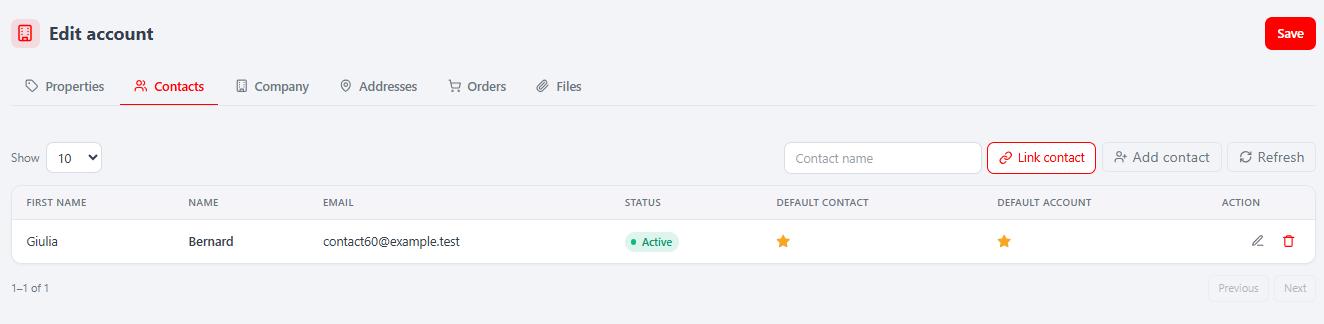

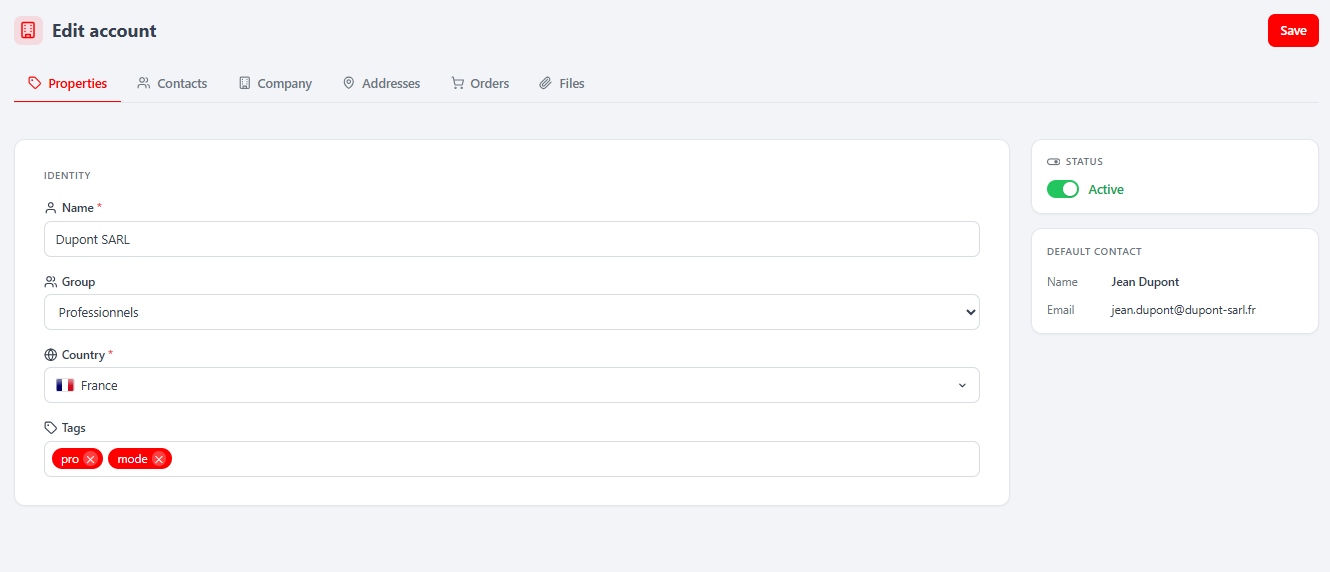

Accounts (/melis-commerce/clients-list) manages B2B customers: the list has search, status/group filters, a column manager, export and CSV import. Opening an account is a sub-tab with Properties, Company, Contacts (link/unlink, set default), Addresses, Orders (history) and Files tabs.

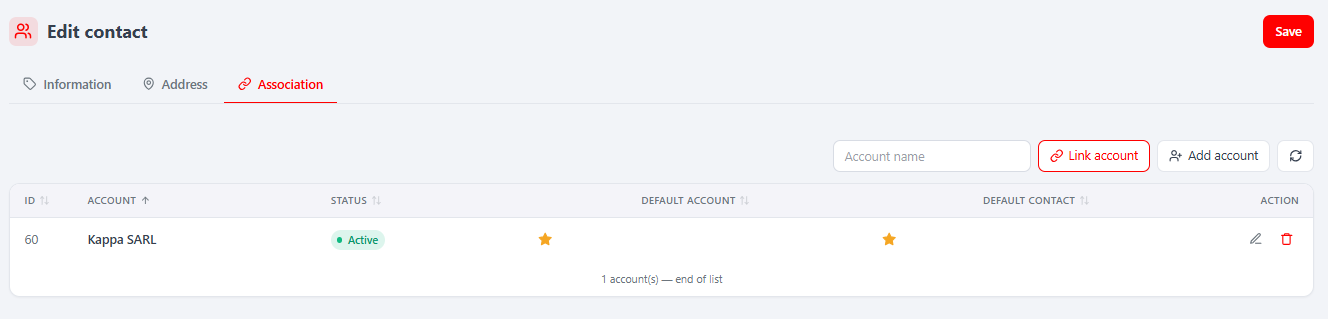

Contacts (/melis-commerce/contact-list) manages individual people. The editor has Information, Address and Association tabs (link/unlink a contact to accounts, set the default). Contacts are backed by MelisComContactService; accounts by MelisComClientService.

Catalogs, products & variants

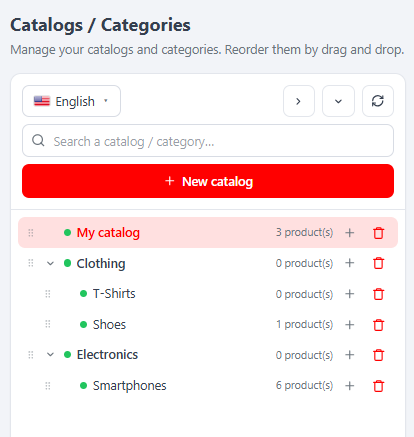

Catalogs (/melis-commerce/categories) is a drag-to-reorder tree of categories; a category has Properties, SEO and Products (reorderable) tabs.

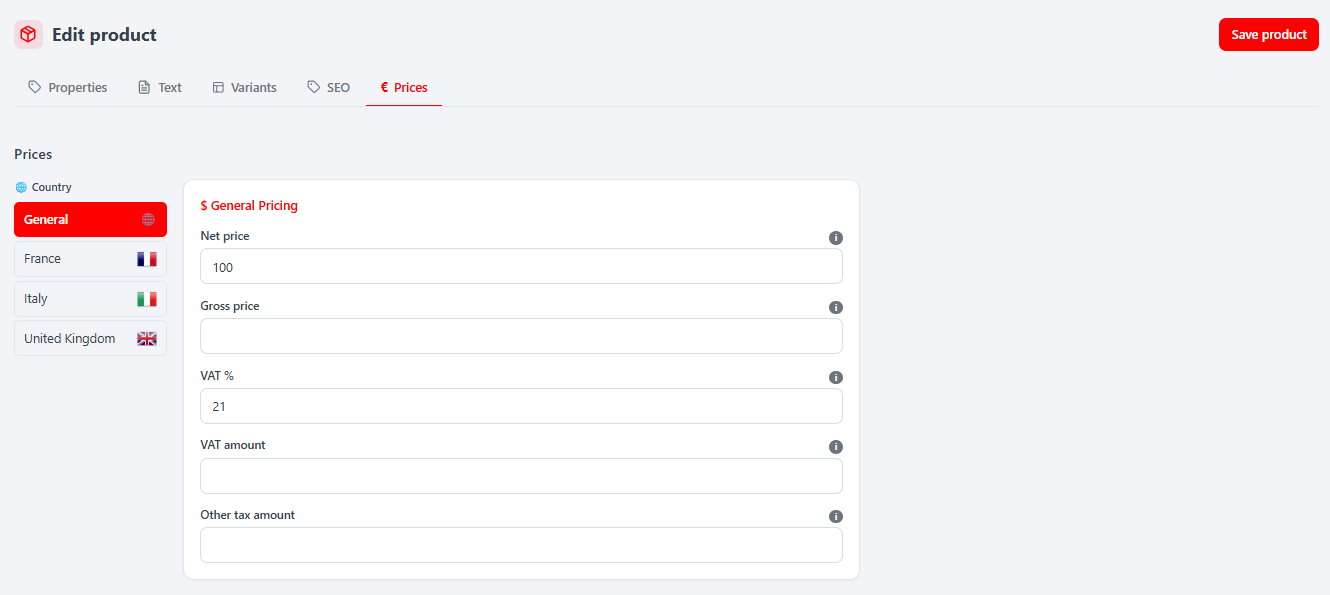

Products (/melis-commerce/product-list) lists products with filters, duplicate and export. The product editor has Properties, Text (per-language), Variants, SEO and Prices tabs. The Variants tab is the richest: each variant has its own Properties, SEO, Prices, Stocks and Associations, plus media.

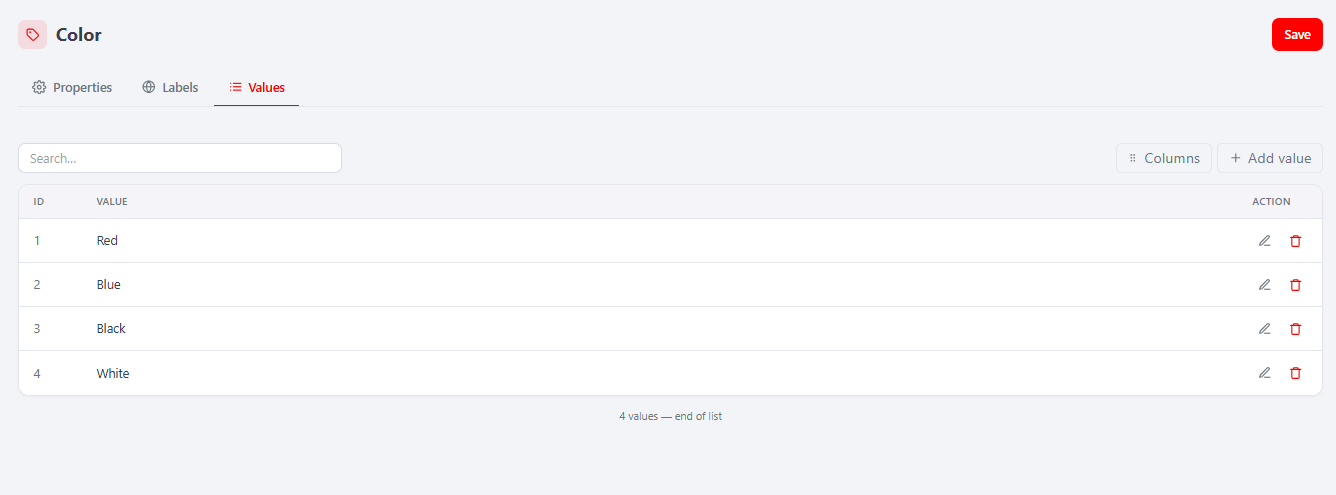

Attributes (/melis-commerce/attribute-list) manages typed product characteristics: editor tabs Properties (reference, type, status, visible, searchable), Labels (per-language) and Values (values with typed translations).

Orders & the checkout wizard

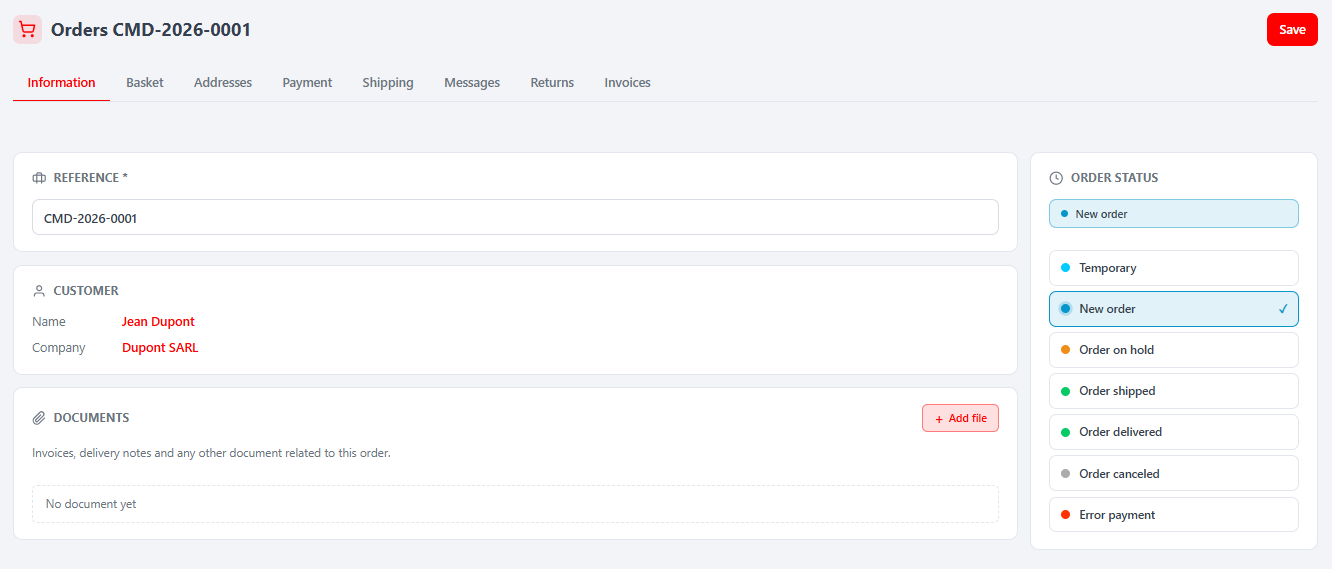

Orders (/melis-commerce/order-list) has status filters and export. The per-order editor tabs are Properties, Basket (read-only), Addresses, Payment (read-only), Shipping, Messages and Returns — plus Invoices when MelisCommerceOrderInvoice is active.

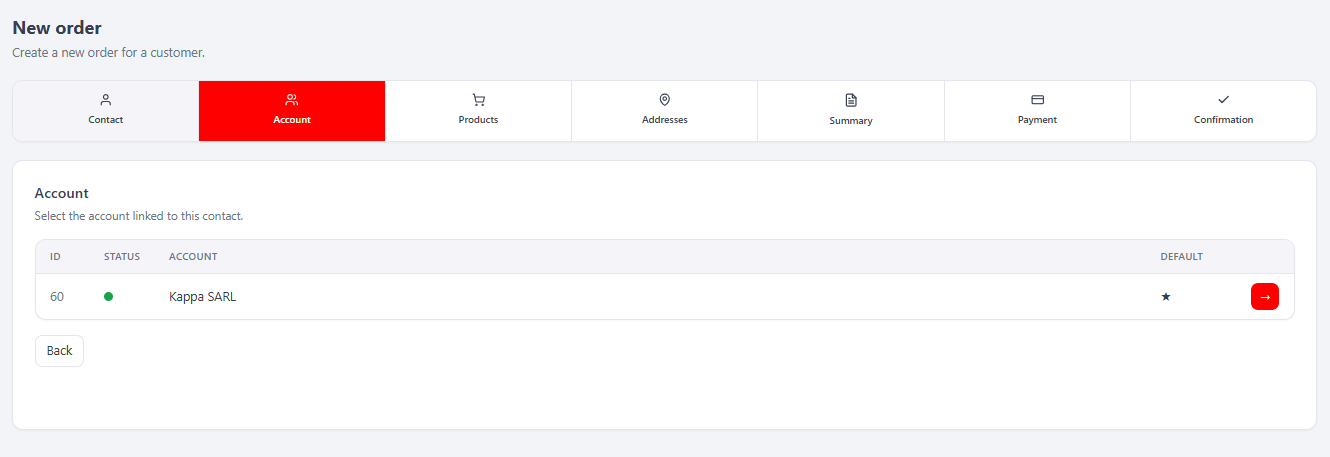

New Order opens a guided 7-step checkout wizard (contact → account → products → addresses → summary → payment → confirmation), backed by a server-side checkout session (endpoints under /orders/checkout/*) that resumes where you left off.

Coupons

Coupons (/melis-commerce/coupon-list) manages discount codes (% or amount). Editor tabs: Properties, Assign account (clients), Assign product, and Orders (usage history). Backed by MelisComCouponService; the built-in discount is itself a listener on meliscommerce_service_get_item_price_end.

Commerce reference tools

Small "settings-style" tools — single-page lists with add/edit modals or a single form:

Tool	Route	Manages
Countries	/melis-commerce/country-list	Commerce country list (add/edit)
Commerce languages	/melis-commerce/language-list	Commerce languages (list + modal)
Currencies	/melis-commerce/currency-lists	Currencies (list + modal, set default)
Order status	/melis-commerce/order-status-lists	Statuses; editor has Properties (colour) + Labels
Client's groups	/melis-commerce/clients-group-list	Customer groups (list + modal)
Commerce settings	/melis-commerce/settings	Single config page — Properties + Accounts tabs

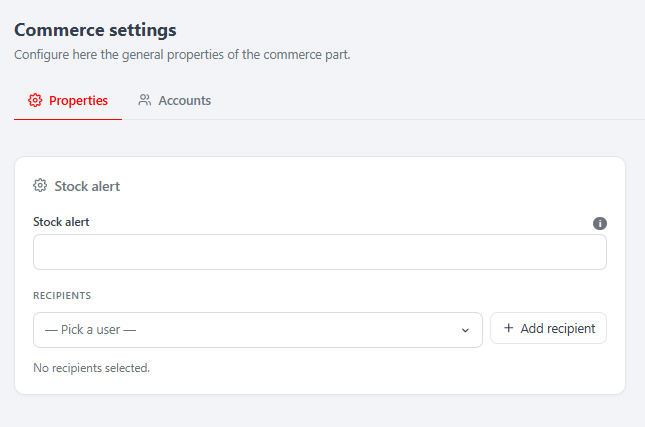

Commerce settings hold the global stock-alert threshold and the account-name strategy (sa_type).

Key services

All services extend MelisComGeneralService and are registered in config/module.config.php. Every public method is wrapped in meliscommerce_service_*_start / *_end events (see Events & listeners). React controllers only validate input and shape JSON — the real work stays in these services.

Service alias	Role
MelisComProductService	getProductById, getProductList → MelisProduct
MelisComVariantService	getVariantById, getVariantListByProductId, getVariantBySKU, getMainVariantByProductId → MelisVariant
MelisComCategoryService	getCategoryById, getCategoryListById(Recursive) → MelisCategory
MelisComAttributeService	getAttributeById, getAttributes → MelisAttribute
MelisComPriceService	getItemPrice($itemId, $countryId, $groupId, $type) — price with fallback hierarchy
MelisComProductSearchService	Front-office product search
MelisComSeoService	Commerce SEO (URLs / meta for products and categories)
MelisComClientService	getClientById, getClientList, getClientByIdAndClientPerson → MelisClient
MelisComContactService	Contact (person) management
MelisComClientGroupsService	Client groups (used for group-specific pricing)
MelisComAuthenticationService	Front-office login: login, getClientId, getPersonId, getClientGroup, setClientId, logout, hasIdentity
MelisComBasketService	getBasket, getPersistentBasket, getAnonymousBasket, addVariantToBasket, transferAnonymousBasketToPersistentBasket → MelisBasket
MelisComOrderService	getOrderById, getOrderList → MelisOrder
MelisComOrderCheckoutService	Two-phase checkout: checkoutStep1_prePayment, checkoutStep2_postPayment
MelisComPostPaymentService	Post-payment transaction recording
MelisComOrderProductReturnService	Product returns / RMA
MelisComCouponService	getCouponById, getCouponList → MelisCoupon
MelisComCurrencyService	Currencies
MelisComShipmentCostService	Shipping cost computation
MelisComStockEmailAlertService	Low-stock email alerts (VARIANTSLOWSTOCK)
MelisComDocumentService	getDocumentById, getDocumentsByRelation → MelisDocument
MelisComDuplicationService	Duplicate products / variants
MelisComLinksService	Front-office commerce link builder
MelisComCacheService	Commerce cache (commerce_big_services)
MelisComHead	SEO head helper (updateTitleAndDescription)
MelisComGeneralService	Base class; helpers: getTableColumns, getEcomLang, getFrontPluginLangId

Pricing & stock resolution

MelisComPriceService::getItemPrice($itemId, $countryId, $groupId, $type) walks a fallback chain:

1. specific country + specific group
2. specific country + general group
3. general country (price_country_id = 0) + specific group
4. general country + general group
5. (for a variant) fall back to the product price

Stock is per variant per country (melis_ecom_variant_stock). When an order drops stock below the threshold, the VARIANTSLOWSTOCK email is sent to the configured recipients.

Checkout pipeline

Two phases in MelisComOrderCheckoutService (the React wizard drives the same server logic):

Phase 1 — checkoutStep1_prePayment($clientId) validates basket and addresses, computes all costs and shipping, generates the order reference, then calls MelisComOrderService::saveOrder(). The order is saved with ord_status = -1 (temporary). Fires meliscommerce_service_checkout_step1_prepayment_start/_end and …_save_success (carries the new orderId).

Phase 2 — checkoutStep2_postPayment() is called after the gateway returns. MelisComPostPaymentService::processPostPayment() records the transaction in melis_ecom_order_payment and moves the order off status -1 to a real status. Fires meliscommerce_service_checkout_step2_postpayment_start/_end.

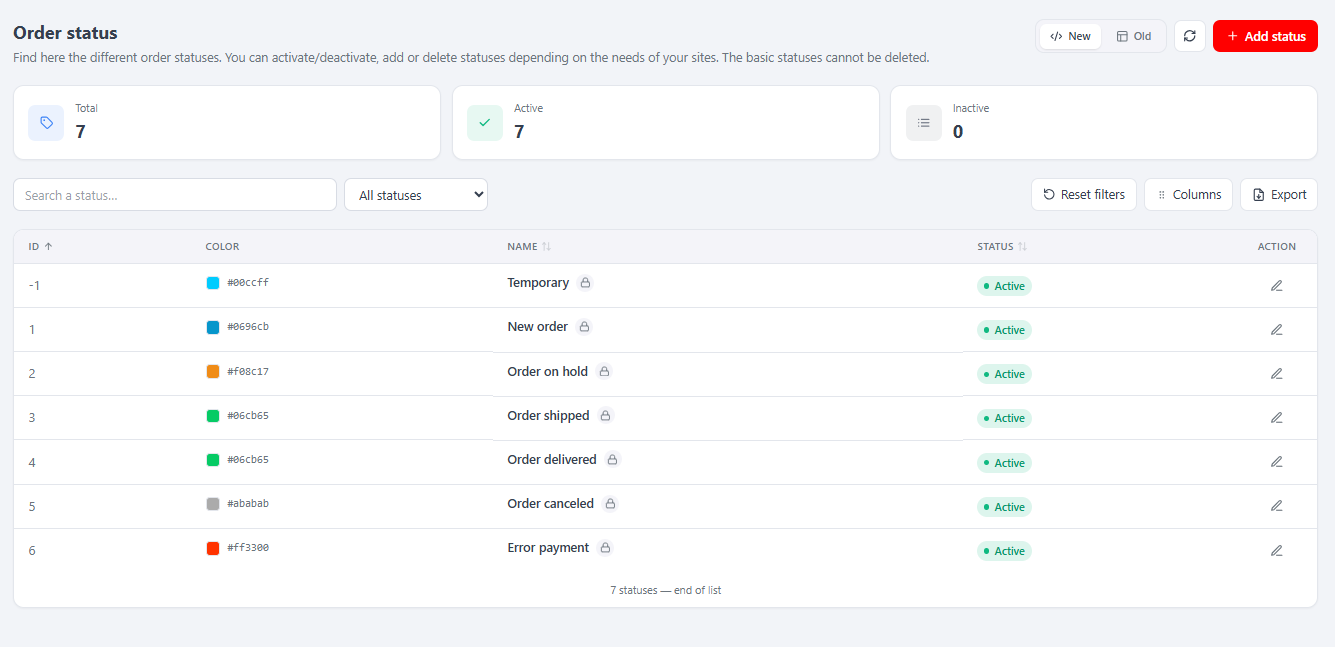

Order statuses: -1 temporary · 1 New order · 2 On hold · 3 Shipped · 4 Delivered · 5 Cancelled · 6 Payment error.

Events & listeners

Every service method emits meliscommerce_service_*_start and *_end events. The named arguments (built by makeArrayFromParameters via reflection) and the results key travel with the event.

• _start listener: mutate inputs before the work runs.
• _end listener: mutate $params['results'] before the caller sees it.

This is the primary extension mechanism — no subclassing needed. The 33 bundled listeners fall into four families:

Family	Examples
Save / validate	…SaveProductListener, …SaveOrderListener, …SaveClientListener, …ValidateVariantListener
Cascade cleanup (country/language removed)	…ProductPriceCountryDeletedListener, …CategoryCountryLink…, …SEOLanguageDeletedListener
Checkout / pricing / stock	…CheckoutCouponListener, …CouponProductPriceListener, …ShipmentCostListener, …PostPaymentListener, …VariantCheckLowStockListener
Front-office SEO routing	…SEOReformatToRoutePageUrlListener, …SEODispatchRouterCommerceUrlListener, …SEOMetaPageListener

React API & capabilities

All routes are child routes of melis-react-api (merged from config/react-api.php): 13 invokable controllers in src/Controller/ReactApi/, 184 routes under /melis/react-api/…. The response contract everywhere is { success, data, error? }; every action calls denyUnlessAccess() first (auth + MelisCoreRights::canAccess(<melisKey>), 401/403). Each entity tool exposes roughly GET /<tool> (keyset list), /<tool>/stats, /<tool>/options, POST /<tool>/save, DELETE /<tool>/delete/:id, GET /<tool>/:id, plus tool-specific sub-resources (e.g. Orders adds the full /orders/checkout/* wizard).

⚠ Commerce languages are namespaced /commerce-languages (not /languages) because the core Languages tool already owns /languages under the shared melis-react-api parent.

config/react.capabilities.php declares one melisReactToolCapabilities entry per tool, keyed under its melisKey. These are declarative default-allow UI hints — they drive the Users → Rights checkbox tree and let React mask tabs/buttons via useCaps(...) — but there is no server-side denyUnlessCan() yet; only denyUnlessAccess() on the tool's melisKey gates the API. Treat capabilities as UI hints, not security.

Front office

Templating plugins are registered under config/plugins/{products,categories,clients,orders}/ and as controller_plugins in module.config.php. Drop them into a CMS page drag-drop zone.

Area	Plugins
Catalog	ProductShowPlugin, ProductListPlugin, ProductSearchPlugin, CategoryTreePlugin, CategoryProductListPlugin, RelatedProductsPlugin, AttributesShowPlugin, ProductAttributePlugin, ProductPriceRangePlugin
Cart & checkout	AddToCartPlugin, CartPlugin, CheckoutPlugin, CheckoutCartPlugin, CheckoutAddressesPlugin, CheckoutCouponPlugin, CheckoutSummaryPlugin, CheckoutConfirmSummaryPlugin, CheckoutConfirmPlugin
Account	LoginPlugin, RegisterPlugin, AccountPlugin, ProfilePlugin, BillingAddressPlugin, DeliveryAddressPlugin, LostPasswordGetEmailPlugin, LostPasswordResetPlugin
Orders (customer)	OrderPlugin, OrderHistoryPlugin, OrderMessagesPlugin, OrderShippingDetailsPlugin, OrderReturnProductPlugin, OrderAddressPlugin

Database tables

59 tables with the melis_ecom_* prefix, grouped by subsystem:

Group	Key tables
Products & variants	melis_ecom_product, melis_ecom_product_text + _text_type, melis_ecom_product_attribute, melis_ecom_product_category, melis_ecom_variant, melis_ecom_variant_attribute_value, melis_ecom_variant_stock, melis_ecom_assoc_variant + _type
Attributes	melis_ecom_attribute + _trans, melis_ecom_attribute_type, melis_ecom_attribute_value + _value_trans
Categories & geo	melis_ecom_category + _trans, melis_ecom_country_category, melis_ecom_country, melis_ecom_lang
Pricing & currency	melis_ecom_price, melis_ecom_currency
Clients (B2B)	melis_ecom_client, melis_ecom_client_person + _person_emails, melis_ecom_client_company, melis_ecom_client_account_rel, melis_ecom_client_person_rel, melis_ecom_client_address + _address_type, melis_ecom_client_groups, melis_ecom_civility, melis_ecom_settings_account
Baskets & orders	melis_ecom_basket_anonymous, melis_ecom_basket_persistent, melis_ecom_order, melis_ecom_order_basket, melis_ecom_order_address, melis_ecom_order_payment + _type, melis_ecom_order_shipping, melis_ecom_order_message, melis_ecom_order_status + _trans, melis_ecom_order_product_return + _details
Coupons	melis_ecom_coupon + _coupon_client / _coupon_order / _coupon_product
Documents & SEO	melis_ecom_document + _doc_type + _doc_relations, melis_ecom_seo, melis_ecom_stock_email_alert

Examples

Read a product, its main variant and a resolved price

$prdSrv   = $sm->get('MelisComProductService');
$varSrv   = $sm->get('MelisComVariantService');
$priceSrv = $sm->get('MelisComPriceService');

$product = $prdSrv->getProductById($prdId, $langId, $countryId);  // → MelisProduct
$variant = $varSrv->getMainVariantByProductId($prdId, $langId, $countryId);  // → MelisVariant
$price   = $priceSrv->getItemPrice($variant->getId(), $countryId, $groupId, 'variant');
// $price['price'] (net), $price['price_currency'], $price['price_details']

Add to basket and run the two-phase checkout

$basketSrv   = $sm->get('MelisComBasketService');
$checkoutSrv = $sm->get('MelisComOrderCheckoutService');

$basketSrv->addVariantToBasket($variantId, 1, $clientId);
$basketSrv->transferAnonymousBasketToPersistentBasket($clientKey, $clientId);

$step1 = $checkoutSrv->checkoutStep1_prePayment($clientId);  // order at status -1
// $step1['orderId'] — hand to payment gateway
$step2 = $checkoutSrv->checkoutStep2_postPayment();          // records payment, moves off -1

Hook the shop without subclassing

// _start → mutate inputs; _end → mutate $params['results'].
$this->attachEventListener(
    $events, '*', 'meliscommerce_service_get_item_price_end',
    function ($e) {
        $params = $e->getParams();
        $price  = $params['results'];
        // modify $price, then:
        $params['results'] = $price;
        return $params;
    }
);

Key files

Concern	Path
Module config (services, controllers, plugins)	vendor/melisplatform/melis-commerce/config/module.config.php
React API routes / capabilities	vendor/melisplatform/melis-commerce/config/react-api.php, config/react.capabilities.php
React brick (source / build)	vendor/melisplatform/melis-commerce/ui-react/src/, public/ui-react/{brick.js, brick.manifest.json}
React API controllers (13)	vendor/melisplatform/melis-commerce/src/Controller/ReactApi/
Front-office plugin config	vendor/melisplatform/melis-commerce/config/plugins/
Services / Entities (10) / Table gateways (59)	vendor/melisplatform/melis-commerce/src/Service/, src/Entity/, src/Model/Tables/
Listeners (33)	vendor/melisplatform/melis-commerce/src/Listener/
DB deltas	vendor/melisplatform/melis-commerce/install/dbdeploy/

See also: Module reference · melis-react-api · melis-commerce-order-invoice · melis-core · melis-cms.
