MelisCmsSlider

Backoffice slider / carousel manager — now a native React back-office brick — with a front-office templating plugin to display sliders on pages. Package melisplatform/melis-cms-slider.

Purpose

MelisCmsSlider provides a back-office tool to build sliders (named carousels of ordered slides — image, title, subtitles, link) and a MelisCmsSliderShowSliderPlugin content block that renders a chosen slider on any front-office page. It also ships a reusable slider picker form element that other modules (News, Blog) embed to attach a slider to a content item.

In Melis v6 the tool ships a native full-React brick for the /melis-react back-office, with a New / Old toggle that falls back to the classic tool in an iframe. The framework, services, DB tables and front-office plugin are unchanged from v5.

Enable it

Add to config/melis.module.load.php:

return [
    // …
    'MelisCmsSlider',
];

Requires: melis-core, melis-engine, melis-front, melis-cms. The module ships dbdeploy: true so its tables are created/updated by melis-dbdeploy. The React brick is activation-gated: it appears in the back-office only while the module is in melis.module.load.php (modular brick discovery, see below).

React back-office

Where: left sidebar → MelisCms group → Slider (tree route /melis-cms/slider). It opens as a top tab named Slider. A New / Old toggle (top-right) switches between the React UI (New, default) and the legacy tool in an iframe (Old).

The tool is a three-level drill-down, surfaced as native host sub-tabs: list of sliders → a slider's slides → a slide form.

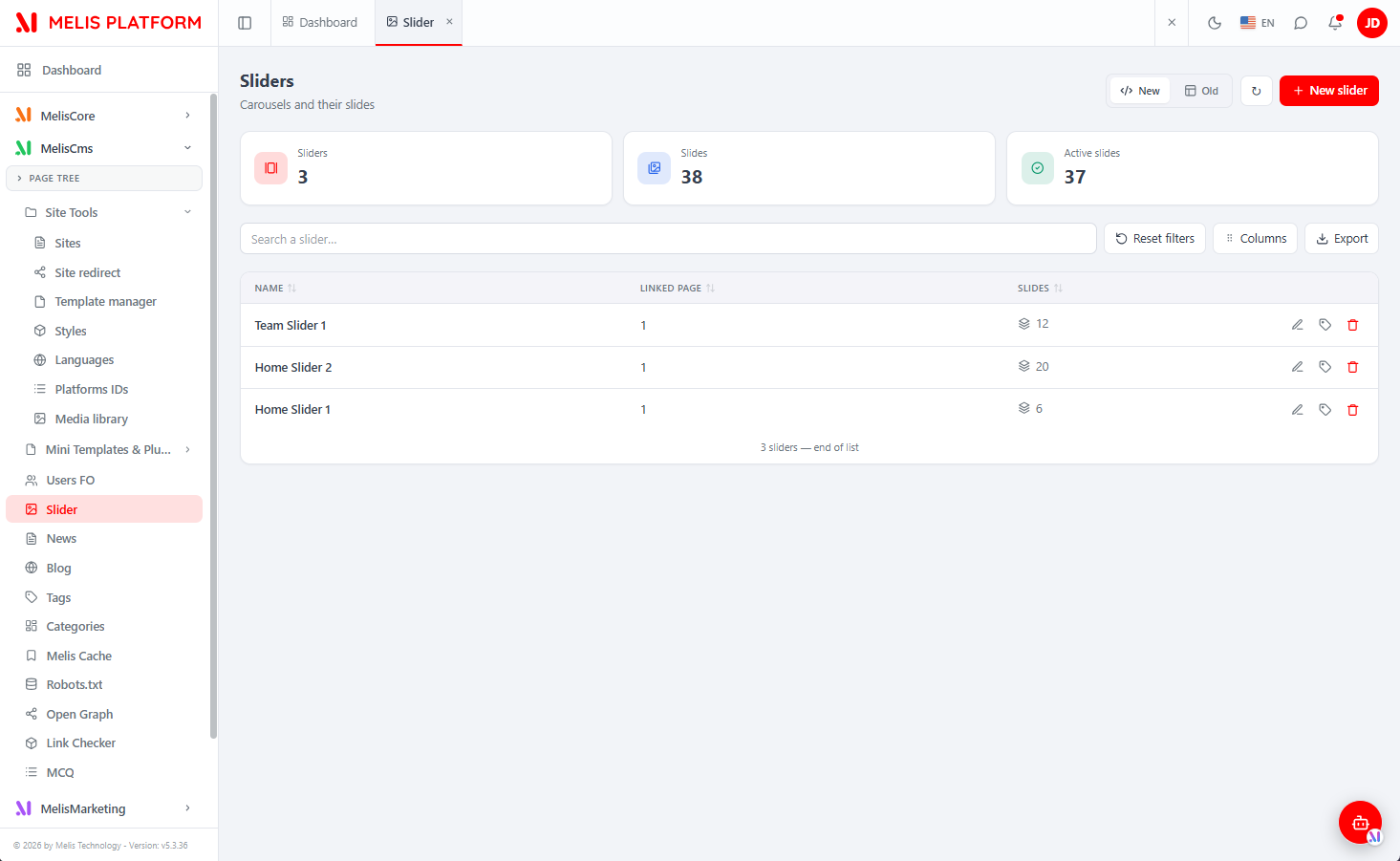

Level 1 — the list of sliders

Lists every slider on the platform (sliders are global; a slider can optionally be linked to a page). The list has KPI cards (total sliders, total slides, active slides), a search box, a Columns manager, an Export button and Reset filters; click a header to sort. Each row offers open (its slides), rename and delete.

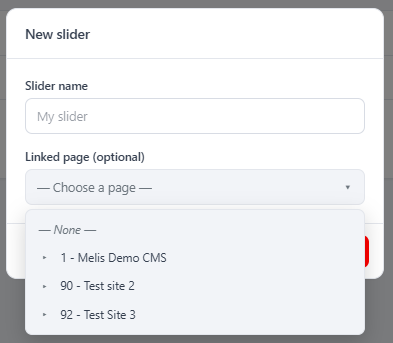

+ New slider opens a modal for the name and an optional linked page chosen from the site's page tree; the same modal renames an existing slider.

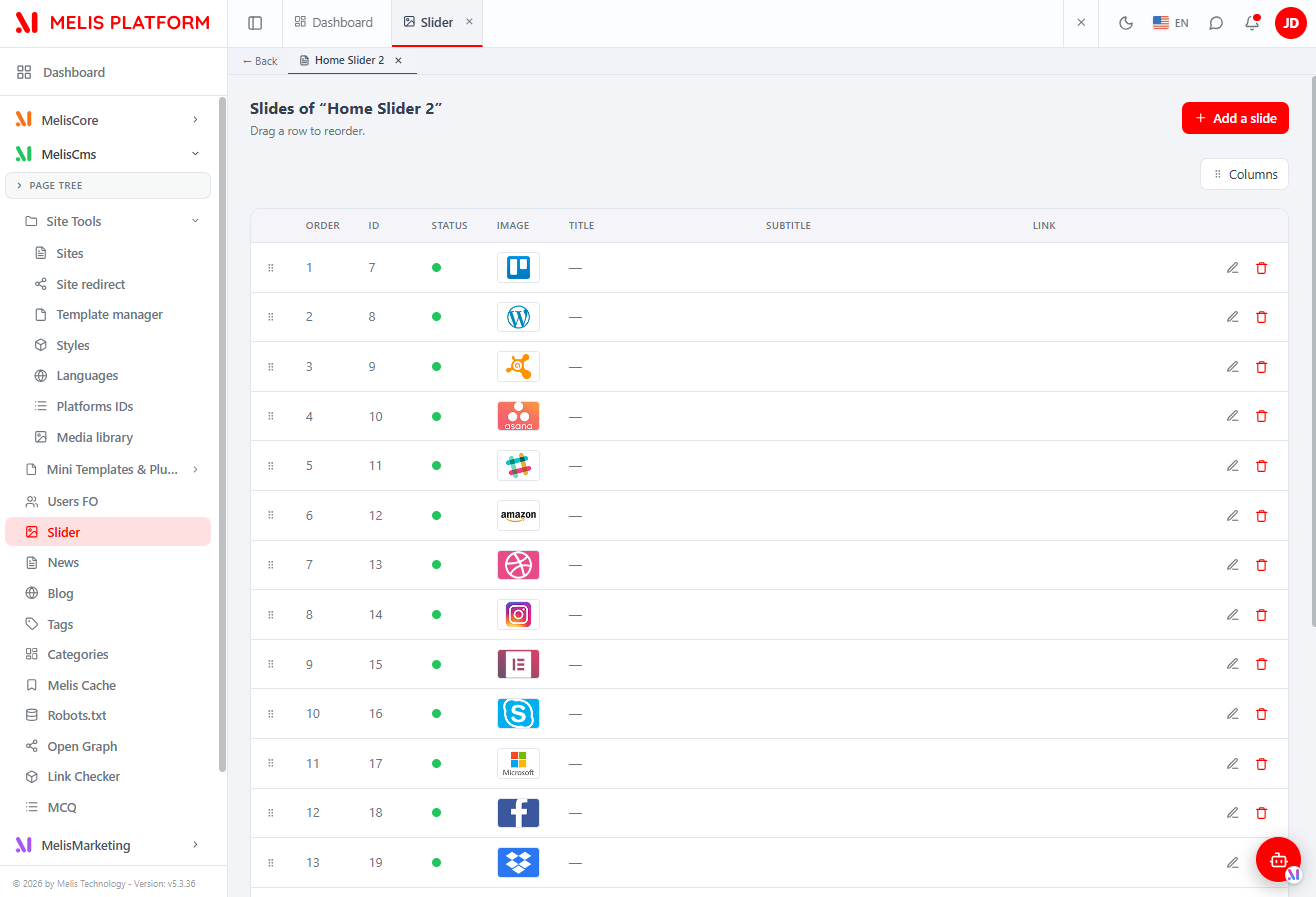

Level 2 — a slider's slides

Opening a slider adds a sub-tab (with ← Back) showing that slider's slides: order, status (green = active), image thumbnail, title, subtitle and link. Drag a row to reorder; + Add a slide creates one; edit/delete per row.

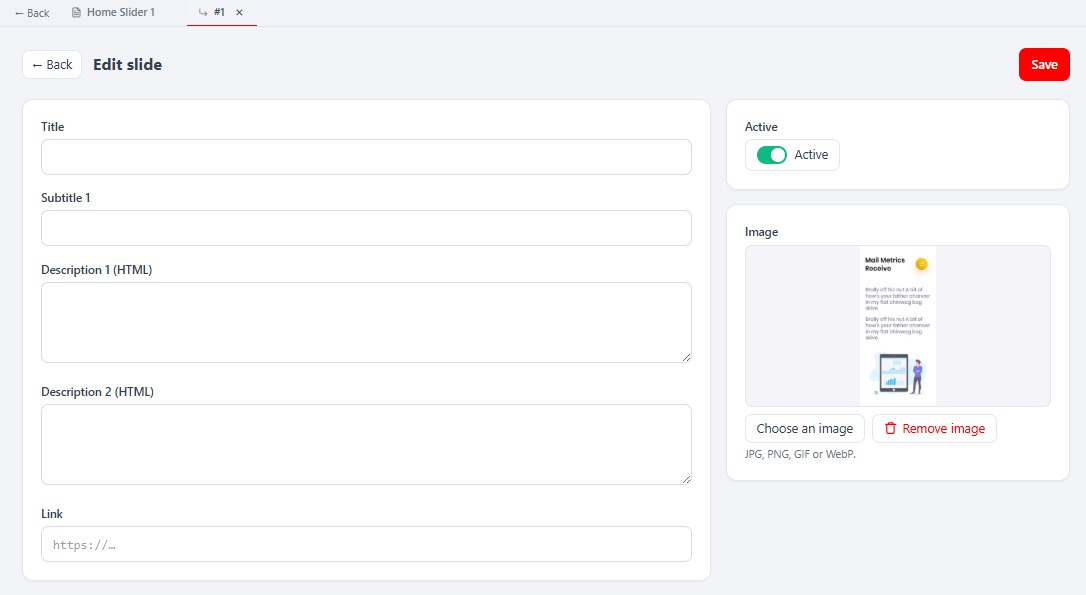

Level 3 — editing a slide

Editing (or adding) a slide opens a nested sub-tab with a React form: Title, Subtitle 1, two Description (HTML) fields, Link, an Active toggle and an Image panel (preview, Choose an image / Remove image; JPG, PNG, GIF or WebP). Save persists the slide. Title and Subtitle 1 are plain text; the two Description fields are raw HTML and map to sub2/sub3.

React API

The brick reads/writes through a JSON layer under /melis/react-api/sliders (routes in config/react-api.php, controller MelisReactApiCmsSliderController). All responses follow the { success, data, error } contract; every fetch sends X-Requested-With: XMLHttpRequest with credentials: 'include'.

Method & URL	Purpose
GET /sliders	List sliders (keyset: limit, search, sort, dir, after) with slideCount.
GET /sliders/stats	KPI counts {sliders, slides, active}.
GET /sliders/:id	One slider {id, name, pageId, slideCount}.
POST /sliders/save	Create / rename a slider ({id?, name, pageId?}).
DELETE /sliders/delete/:id	Delete a slider, its slides and image files.
GET /sliders/:id/slides	The ordered slides of a slider.
POST /sliders/slides/reorder	Reorder ({sliderId, ids:[…]}).
POST /sliders/slide/upload	Multipart image upload (field image, ?sliderId=) → {path}.
GET /sliders/slide/:id	One slide.
POST /sliders/slide/save	Create / update a slide.
DELETE /sliders/slide/delete/:id	Delete a slide, re-sequence order, remove its image.

The controller talks to the tables directly via parameterised SQL, reproducing the legacy business rules (name required ≤255, slide order auto = max+1, images under /media/sliders/<sliderId>/… with extensions jpg/jpeg/gif/png/webp, safe-URL check on the link, cascade delete of files). The higher-level MelisCmsSliderService still backs the legacy tool and front-office plugin.

Capabilities

Advanced rights are declared in config/react.capabilities.php under the rights-bearing node meliscms_slider_tools_section, mirroring the three levels. Flattened capability strings (e.g. list, create, rename, export, slides, slides.create, slides.image.create) are checked in React via MelisCan(melisKey, cap) and server-side via denyUnlessCan(cap). Every controller action is guarded twice — an access guard (denyUnlessAccess() → 401/403) then a capability check; the capability resolver is default-allow for undeclared caps.

Host integration

Concern	How
Discovery / gating	GET /melis/react-api/react-modules lists active modules shipping a brick.manifest.json; the host loads brick.js and mounts the brick. Removing the module hides the tool.
Menu → route	useNavMenu maps forwardKey MelisCmsSlider/MelisCmsSliderList to /melis-cms/slider.
Sub-tabs	subTabs: true — the brick drives the host's native sub-tab bar via window.__melisOpenSubTab / __melisCloseSubTab / __melisUpdateSubTabLabel; each screen stays mounted (hidden) so state survives.
New / Old toggle	window.__melisSetToolView(MELIS_KEY, mode); Old renders /melis/react-tool-page?key=MelisCmsSlider_left_menu in an iframe.
i18n	The brick reads document.documentElement.lang and ships an in-file {fr, en} dictionary.

Brick id slider (matches brick.tsx ⇄ brick.manifest.json); the bundle is a Vite IIFE with React externalised to the host globals, so the UI uses inline styles and in-file i18n instead of importing host modules.

Key services

These still power the legacy tool, micro-services and the front-office plugin.

Alias	Role
MelisCmsSliderService	Business logic for sliders and slides; fires meliscmsslider_* events.
MelisCmsSliderTable	Table gateway for melis_cms_slider.
MelisCmsSliderDetailTable	Table gateway for melis_cms_slider_details.

MelisCmsSliderService extends MelisGeneralService and exposes:

Method	Role
getSlider($sliderId, $status)	One slider with its slides; pass 1 for active slides only.
getSliderByPageId($pageId, $status)	Slider linked to a page id, with its slides.
getSliderList($start, $limit, $order, $search)	Paginated/searchable list of sliders.
getSliderDetails($sliderDetailId)	A single slide row.
saveSlider($data, $sliderId)	Create or update a slider; returns the slider id.
saveSliderDetails($slideData, $detailId)	Create or update a slide.
updateSliderDetailsOrdering($detailId, $newOrder)	Reorder a slide.
deleteSlider($sliderId)	Delete a slider and all its slides.
deleteSliderDetails($sliderDetailId)	Delete a single slide.

getSlider() / getSliderByPageId() return a MelisCmsSlider\Entity\MelisCmsSlider entity whose getSlider() gives the container row and getSliderDetails() gives the slides.

Event naming note: each method fires meliscmsslider_service_*_start / _end events, but several write methods reuse another method's event names in the current source. saveSlider fires the get_slider_details events, and deleteSliderDetails / updateSliderDetailsOrdering reuse deleteSlider's delete_details events — so a listener on meliscmsslider_service_delete_details_end also fires on reorders.

Micro-services (config/app.microservice.php) expose getSliderList, getSlider, getSliderDetails, getSliderByPageId.

Front office

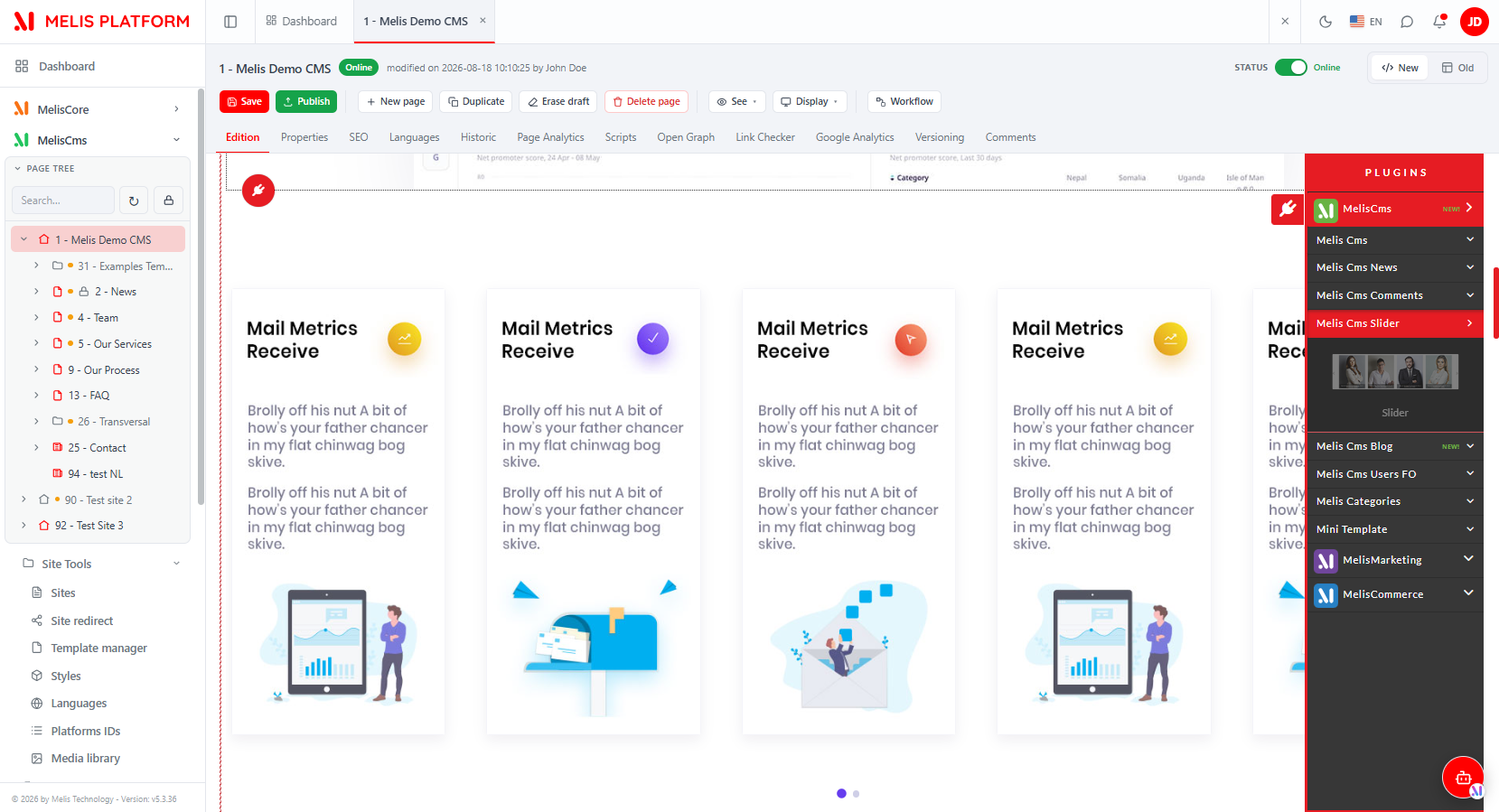

From the React page editor (MelisCms → open a page → Edition), open the plugins panel and drop the Show Slider block onto the page; its Properties let you pick the rendering template and the slider to display.

Item	Role
MelisCmsSliderShowSliderPlugin (controller plugin)	Fetches the configured slider via MelisCmsSliderService and renders it through the chosen template. Config: config/plugins/MelisCmsSliderShowSliderPlugin.config.php — one Properties tab with template_path and sliderId. Default template: view/melis-cms-slider/plugins/showslider.phtml.
MelisCmsSliderPlugin (view helper)	MelisCmsSliderHelper — renders the plugin from a phtml template.
CmsSliderSelect (form element)	Select populated with available sliders; factory src/Form/Factory/CmsSliderSelectFactory.php. Used in the plugin option form and embedded by News / Blog.

Reusable picker interfaces: meliscmsslider_select_slider (renderSelectSliderAction) for News, meliscmsslider_select_slider_blog for Blog.

Consumers: MelisCmsNews persists the chosen slider in cnews_slider_id and ships a listener that detaches a deleted slider from any news using it; Blog uses cblog_slider_id.

Database tables

Table	Holds
melis_cms_slider	A slider: mcslide_id, mcslide_name, mcslide_page_id, mcslide_date.
melis_cms_slider_details	A slide: mcsdetail_id, FK mcsdetail_mcslider_id, mcsdetail_status, mcsdetail_title, mcsdetail_sub1–sub3, mcsdetail_link, mcsdetail_img, mcsdetail_order.

Example

$slider = $this->getServiceManager()->get('MelisCmsSliderService');

// Fetch one slider with active slides only
$one    = $slider->getSlider($sliderId, 1);

// Fetch the slider tied to a page
$byPage = $slider->getSliderByPageId($pageId, 1);

// Paginated list
$list   = $slider->getSliderList(0, 10, 'mcslide_id', null);

// Create / update
$id     = $slider->saveSlider($data, $sliderId);
$did    = $slider->saveSliderDetails($slideData, $detailId);

// Reorder
$slider->updateSliderDetailsOrdering($detailId, $newOrder);

// Delete slider + all its slides
$slider->deleteSlider($sliderId);

Listening to a service event:

$sharedEvents->attach(
    'MelisCmsSlider',
    'meliscmsslider_service_delete_details_end',
    $fn,
    50
);

Key files

Concern	Path
Module wiring	vendor/melisplatform/melis-cms-slider/config/module.config.php
React API routes	vendor/melisplatform/melis-cms-slider/config/react-api.php
React capabilities	vendor/melisplatform/melis-cms-slider/config/react.capabilities.php
React API controller	vendor/melisplatform/melis-cms-slider/src/Controller/MelisReactApiCmsSliderController.php
React brick	vendor/melisplatform/melis-cms-slider/ui-react/src/ · public/ui-react/brick.manifest.json
Backoffice interface / tools	vendor/melisplatform/melis-cms-slider/config/app.interface.php · app.tools.php
Slide form	vendor/melisplatform/melis-cms-slider/config/app.forms.php
Micro-service config	vendor/melisplatform/melis-cms-slider/config/app.microservice.php
Templating plugin config	vendor/melisplatform/melis-cms-slider/config/plugins/MelisCmsSliderShowSliderPlugin.config.php
Service	vendor/melisplatform/melis-cms-slider/src/Service/MelisCmsSliderService.php
Entity	vendor/melisplatform/melis-cms-slider/src/Entity/MelisCmsSlider.php
Table gateways	vendor/melisplatform/melis-cms-slider/src/Model/Tables/
Slider picker factory	vendor/melisplatform/melis-cms-slider/src/Form/Factory/CmsSliderSelectFactory.php
View helper	vendor/melisplatform/melis-cms-slider/src/View/Helper/MelisCmsSliderHelper.php
Default front template	vendor/melisplatform/melis-cms-slider/view/melis-cms-slider/plugins/showslider.phtml

See also: Module reference · Legacy v5 page
