MelisCacheInternal

Full-page HTTP cache for the CMS front-office, with partial (zone) caching and per-page exclusions. Package melisplatform/melis-cache-internal.

Purpose

MelisCacheInternal is a performance layer that sits in front of MelisFront's render pipeline. It stores the fully-rendered HTML (as a serialised HTTP Response) of a published page and serves it on subsequent visits, skipping the entire render. Individual plugins on a page can be configured to refresh on a shorter TTL (partial/zone caching) while the rest of the page remains cached. Pages are automatically invalidated on publish, unpublish or delete, and an audit log of manual cache clears is kept for three months. This module is distinct from MelisEngine's general key/value object cache — it is specifically an HTTP full-page cache.

Enable it

Add to config/melis.module.load.php:

return [
    'MelisCacheInternal',
];

Requires melisplatform/melis-cms. The module ships database migrations (dbdeploy: true) that must be applied on first install. In the v6 back-office the tool appears only when the module is activated — the React host discovers it through its brick.manifest.json (see React back-office).

Key services

Registered under service_manager in config/module.config.php. Resolve with $sm->get('<alias>').

Service alias	Role
MelisCacheInternalService	Full-page cache operations: getCacheConfig(), getPageCacheByPageIdAndType($pageId, $uri, $methodType), getPageCacheByUrl(), saveItem(), deleteCacheByPageId(), deleteCacheByUrl(), deleteCacheByPageIdOrByUrl(), deleteAllCache(), getMelisCacheSize(), hasCache(). Fires melis_cache_internal_*_start/_end events.
PartialCachingService	Partial/zone cache management: getLists(), savePartialCaching(), deletePartialCaching(), getPartialCachingByCode(), searchPartialCachingByCode(), and processedZoneCaching($uri, $response, $pageId, $type) — the zone-refresh engine that re-renders only expired zones on a cache hit.

The React back-office reuses these same services and tables, so the React path reproduces the exact legacy behaviour (config is a singleton upsert, exclusions are replaced in bulk, deleteCacheByUrl handles the * wildcard/REGEXP).

Request cycle mechanism

Listeners are attached by render mode in Module.php:

Listener	Event	Role
MelisCacheInternalPageGetCacheListener	MvcEvent::EVENT_DISPATCH (priority 10)	Serve — on a cache hit, outputs the stored response and short-circuits the render (adds Melis-Cache: Hit header).
MelisCacheInternalPageSaveCacheListener	MvcEvent::EVENT_FINISH (priority -1001)	Store — after render, saves a 200 response into cache.
MelisCacheInternalViewResultListener	melisengine_melistemplating_view_result_plugin_end	Wraps each plugin's output with partial-cache metadata (data-pcache-code, data-pcache-gendate, plugin name/id/dbkey).
MelisCacheInternalCmsPageListener	meliscms_page_publish_end / …_unpublish_end / …_delete_end	Invalidate the page's cache and persist partial-plugin config into the page.
MelisCacheInternalDeleteCacheListener	melis_cache_delete_cache	Invalidate on demand by pageId or pageUrl.
MelisCacheInternalSaveEditionSessionListener	meliscms_page_savesession_plugin_start	Stash a plugin's partial-cache config in session for publish.
MelisCacheInternalGetPluginParametersListener	melistemplating_plugin_update_parameters	Inject partial-cache settings into a plugin's backoffice edit form.
MelisCacheInternalPartialCachingFormConfigListener	ModuleEvent::EVENT_LOAD_MODULES_POST	Add the partial-caching form tab to every front plugin's modal.
MelisCacheInternalFlashMessengerListener	meliscacheinternal_save_cache_end	Flash-messenger and activity logging.

Cache key = page id + normalised URL + request method (1 = GET, 2 = POST). Normalised URL means URL parameters listed in melis_cache_url_parameters are stripped before keying, so tracking parameters such as utm_source do not fragment the cache. The cached value (mc_cache_content) is a serialised HTTP Response (body + headers), not a raw HTML blob. All devices share the same cached response (responsive layout is assumed).

Partial (zone) caching

A fully-cached page can keep individual plugins fresh at a shorter TTL:

• MelisCacheInternalViewResultListener wraps each plugin's output with data-pcache-* metadata (cache code and generation date) at render time.
• On a cache hit, PartialCachingService::processedZoneCaching() parses those markers and, for each zone whose TTL has elapsed, re-renders only that zone. Type PLUGIN re-renders the templating plugin; type MANUAL forwards to a configured module/controller/action.
• A partial cache code (melis_cache_partial_codes) defines the zone's type, code, TTL (mcpc_time), and the MANUAL target.
• A main plugin config (melis_cache_partial_general_site_plugins) is a site-wide base that propagates to all pages; _exclusion rows exclude a plugin from caching on a given page.

React back-office

In v6 the tool ships as a native full-React brick — a single left-menu tool (Melis Cache) whose screens are in-tool tabs, not host sub-tabs. Find it under Sidebar → MelisCms → Melis Cache (fa fa-bookmark), mounted at /melis-cms/cache-internal. The header carries the "Platform cache management" subtitle, a refresh button that follows the active tab, a global Save button, and a New / Old toggle: New is the React UI (default); Old renders the classic tool in a persistent iframe (/melis/react-tool-page?key=MelisCacheInternal_tool).

The four tabs:

Tab	Content

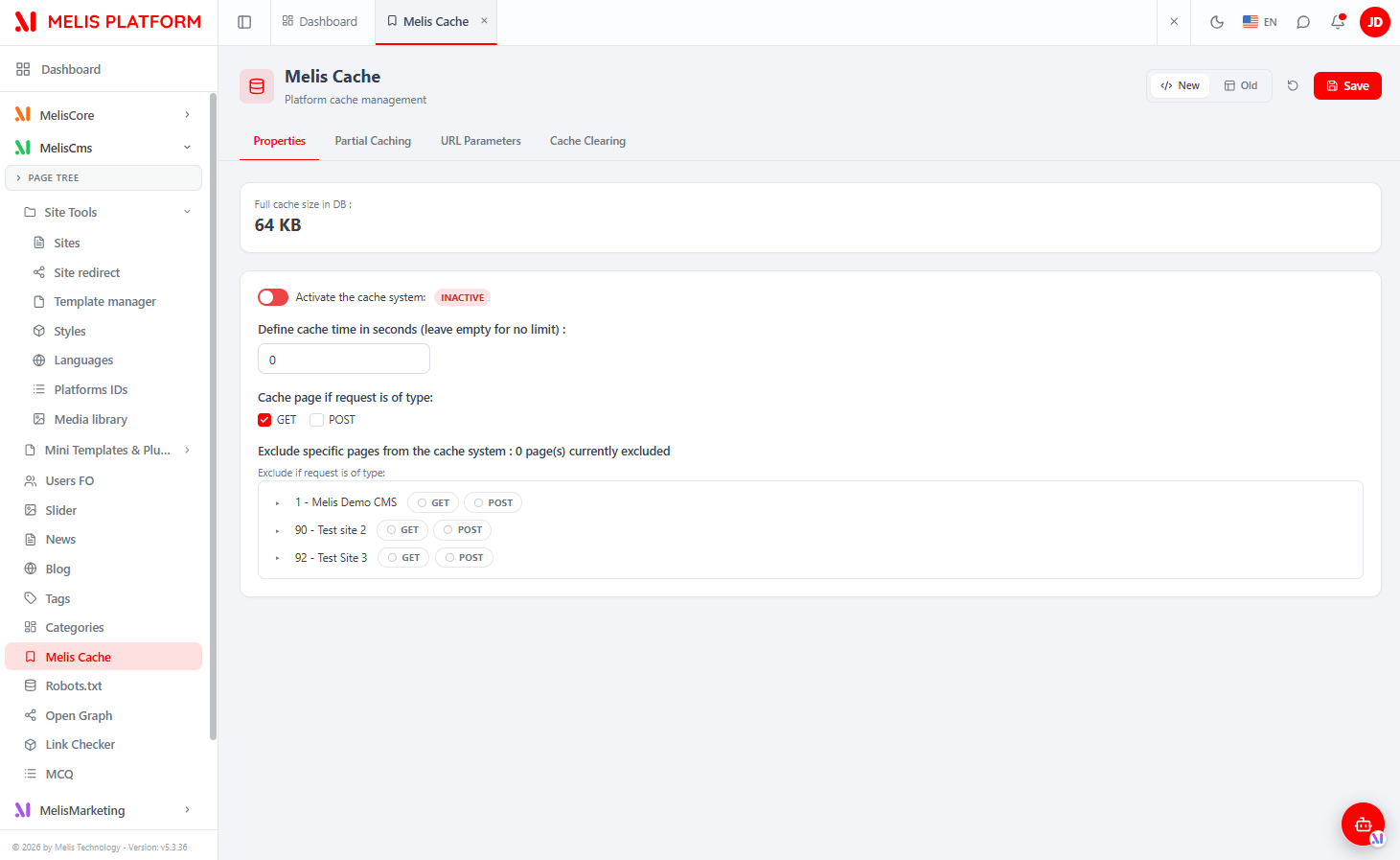

Properties	Full cache size in DB, the Activate the cache system toggle, cache time in seconds (TTL), the GET/POST request-type checkboxes, and the page-exclusion tree (toggle GET/POST per page). Persisted by the global header Save.

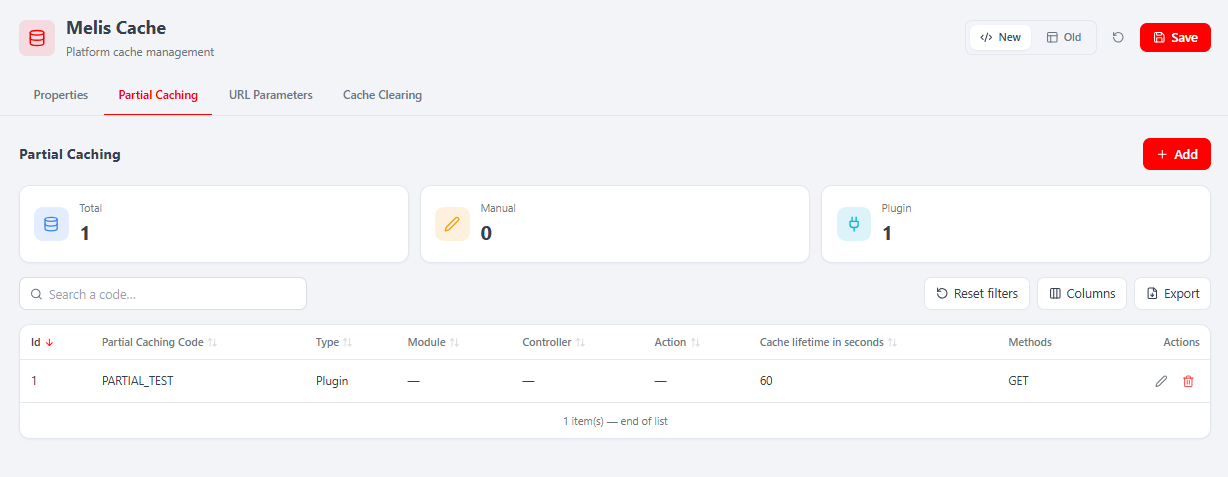

Partial Caching	CRUD list of partial-cache codes with KPI cards (Total / Manual / Plugin), search, column manager, Export and + Add. Columns: Id, Partial Caching Code, Type, Module, Controller, Action, Cache lifetime in seconds, Methods.

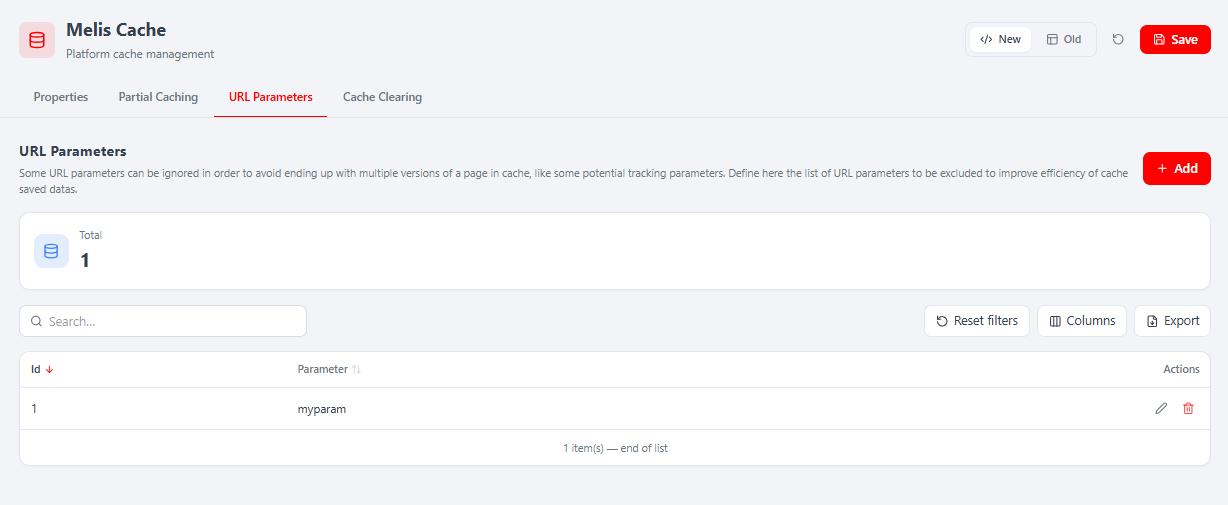

URL Parameters	CRUD list of query-parameter names ignored when keying the cache (Total KPI, search, Export, + Add). Add e.g. utm_source so link variants share one cache entry.

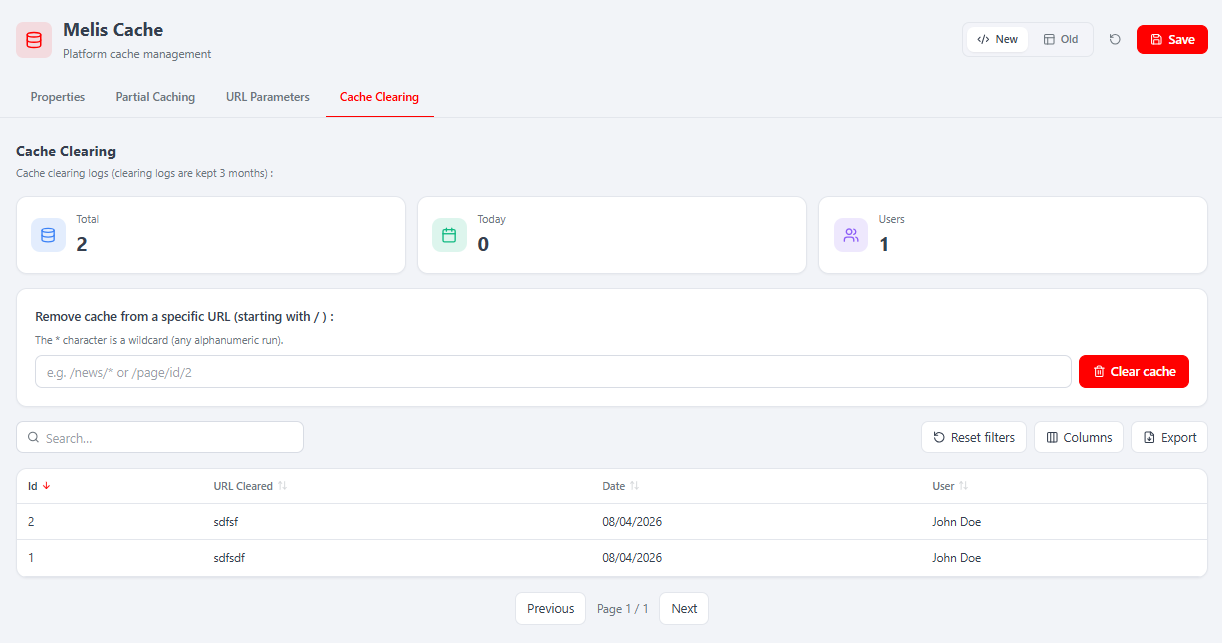

Cache Clearing	Clear-by-URL form (URL starting with /, * as a wildcard) plus the clearing-logs audit table (KPI cards Total / Today / Users; columns Id, URL Cleared, Date, User; offset pagination). Kept 3 months.

Common tasks: turn caching on / set TTL → Properties → Activate → cache time → tick GET/POST → Save; stop a page being cached → Properties → tick GET/POST for that page in the tree → Save; add a partial rule → Partial Caching → + Add; ignore a tracking param → URL Parameters → + Add; clear a URL now → Cache Clearing → type URL → Clear cache.

React API

The React UI talks to a JSON API served by this module's own controllers (sub-namespace MelisCacheInternal\Controller\React, registered in config/module.config.php) — notmelis-react-api. Base path /melis/MelisCacheInternal/react-api. Every action extends MelisAbstractActionController, is keyed on MELIS_KEY = 'MelisCacheInternal_tool', guards access via denyUnlessAccess() + denyUnlessCan(), and returns { success, data, error }.

Method & URL (relative to base)	Purpose
GET /config	Settings + cache size + page exclusions
POST /config/save	Save settings (singleton upsert) + bulk-replace page exclusions
POST /config/empty-cache	Empty the whole cache
POST /config/clear-cache	Clear by URL pattern (no log)
GET /page-tree?nodeId=	Lazy page tree for exclusions (nodeId=-1 = root)
GET /partial-caching · /stats · /:id	Keyset list · KPI · one code
POST /partial-caching/save · /delete/:id	Create / update · delete a code
GET /url-parameters · /stats · /:id	Keyset list · KPI · one parameter
POST /url-parameters/save · /delete/:id	Create / update · delete
GET /clearing-logs · /stats	Offset-paginated logs · KPI (total / today / users)
POST /clearing-logs/clear-cache	Clear by URL and log it

const BASE = '/melis/MelisCacheInternal/react-api'
// save config + page exclusions (bulk replace)
await apiFetch<null>('/config/save', {
  method: 'POST',
  body: JSON.stringify({ active: true, time: 3600, requestType: ['GET'],
    pageExclusions: [{ pageId: 42, excludeGet: true, excludePost: false }] }),
})
// create a partial-caching code
await apiFetch<{ id: number }>('/partial-caching/save', {
  method: 'POST',
  body: JSON.stringify({ type: 'PLUGIN', code: 'NEWS_LATEST', time: 60,
    module: '', controller: '', action: '', requestGet: true, requestPost: false }),
})

Every fetch sends X-Requested-With: XMLHttpRequest; POSTs with a body add Content-Type: application/json. The React controllers reuse the module's Laminas services and tables; the legacy controllers still power the Old view.

Capabilities

Advanced rights are declared in config/react.capabilities.php under the rights-bearing node MelisCacheInternal_tool (the same melisKey as the manifest, the Old-view iframe and the access guard). It is a per-tab tree; Capabilities::flatten() turns it into dotted strings that React reads via useCaps('MelisCacheInternal_tool').can('…'):

MelisCacheInternal_tool
├─ tab "config"   actions: edit                                  (Properties — save settings)
├─ tab "partial"  actions: list · create · edit · delete · export   (Partial Caching CRUD)
├─ tab "params"   actions: list · create · edit · delete · export   (URL Parameters CRUD)
└─ tab "logs"     actions: list · clear · export                 (Cache Clearing — logs + clear by URL)

Tab visibility is filtered by can('config'|'partial'|'params'|'logs'); actions are gated per leaf (e.g. the config Save button by can('config.edit')). Every server action is guarded twice — denyUnlessAccess() (auth + MelisCoreRights::canAccess) then denyUnlessCan('<leaf>') — and Capabilities is default-allow for an undeclared tool/cap.

Database tables

Table	Holds
melis_cache	Cache entries: mc_page_id, mc_cache_url (normalised), mc_cache_content (serialised Response), mc_cache_date, mc_cache_method_type (1 GET / 2 POST).
melis_cache_config	Global config: mcc_active, mcc_time (TTL seconds), mcc_request_type (GET, POST).
melis_cache_exclusions	Per-page exclusions: mce_page_id, mce_request_get, mce_request_post.
melis_cache_partial_codes	Partial cache zone rules: mcpc_type (MANUAL/PLUGIN), mcpc_code, mcpc_time (TTL), mcpc_module/controller/action.
melis_cache_partial_general_site_plugins	Site-wide main-plugin configs: mcpg_site_id, mcpg_page_id, mcpg_plugin_*, mcpg_cache_code.
melis_cache_partial_general_site_plugins_exclusion	Per-page plugin exclusions from caching.
melis_cache_url_parameters	Ignored query-parameter names (mcup_name).
melis_cache_clearing_logs	Audit log: mccl_cache_url, mccl_user_id, mccl_clearing_date.

Example

Delete the cache for a specific page programmatically:

// In a controller or service with the service manager available
$cacheSrv = $sm->get('MelisCacheInternalService');

// Invalidate by page ID
$cacheSrv->deleteCacheByPageId($pageId);

// Invalidate by URL
$cacheSrv->deleteCacheByUrl('/my-page');

// Check whether a cached entry exists
$hasCache = $cacheSrv->hasCache($pageId, $normalisedUrl, $methodType); // 1=GET, 2=POST

Key files

Concern	Path
Module bootstrap (listener wiring)	vendor/melisplatform/melis-cache-internal/src/Module.php
Module config (services, controllers, table aliases, React routes)	vendor/melisplatform/melis-cache-internal/config/module.config.php
React capabilities tree	vendor/melisplatform/melis-cache-internal/config/react.capabilities.php
React API controllers	vendor/melisplatform/melis-cache-internal/src/Controller/React/
React brick source / build	vendor/melisplatform/melis-cache-internal/ui-react/ → public/ui-react/brick.js + brick.manifest.json
Full-page cache service	vendor/melisplatform/melis-cache-internal/src/Service/MelisCacheInternalService.php
Partial/zone cache service	vendor/melisplatform/melis-cache-internal/src/Service/PartialCachingService.php
Serve listener (cache hit)	vendor/melisplatform/melis-cache-internal/src/Listener/MelisCacheInternalPageGetCacheListener.php
Store listener (cache save)	vendor/melisplatform/melis-cache-internal/src/Listener/MelisCacheInternalPageSaveCacheListener.php
CMS page invalidation listener	vendor/melisplatform/melis-cache-internal/src/Listener/MelisCacheInternalCmsPageListener.php
Database migrations	vendor/melisplatform/melis-cache-internal/install/dbdeploy/

See also

• melis-cms — the CMS whose publish events trigger cache invalidation.
• melis-front — the render pipeline that MelisCacheInternal wraps.
• melis-engine — the platform's general object cache (distinct from this module).
• Module reference — all platform modules.
