MelisMessenger

Internal, user-to-user messaging inside the Melis back-office, surfaced in the React back-office as a topbar notification icon and a "Melis Messenger" tab in My Account. Package melisplatform/melis-messenger.

Purpose

MelisMessenger adds a lightweight private-messaging system so back-office collaborators can talk to each other. A user starts a conversation with one or more other users, messages are exchanged and refreshed on a polling interval, and an unread badge surfaces new messages from any screen. It is a back-office-only tool — there is no front-office component.

In the React back-office (/melis-react) it is a special native-React brick, not a left-menu tool. It has no sidebar entry and no route (route, forwardKey, melisKey are all null) and instead plugs two widgets into host extension points:

a topbar messenger icon with an unread-count badge (MessengerHeader.tsx), and
a "Melis Messenger" tab inside My Account (MessengerTab.tsx), a native React chat panel.

The React components ship no react-api and no capabilities — they reuse the module's existing legacy JSON endpoints. Business logic stays server-side in MelisMessengerService.

Enable it

Add to config/melis.module.load.php:

php

return [
    'MelisMessenger',
];

Requires melisplatform/melis-core. The module category is core with dbdeploy enabled, so its tables install through the dbdeploy mechanism. Both React surfaces appear only when the module is active — the account tab is guarded by window.__melisIsModuleActive('MelisMessenger'), and the header widget is registered through the brick, which the host loads only for active modules.

In the React back-office

There is no sidebar entry for Messenger. You reach it two ways:

The topbar icon — a chat bubble in the back-office header, next to the language switcher. A red badge shows your unread count (99+ above 99). Clicking it opens My Account with the Melis Messenger tab pre-selected.

The top-bar messenger icon (highlighted) sitting next to the language switcher and the other header widgets; a red badge appears on it when you have unread messages.

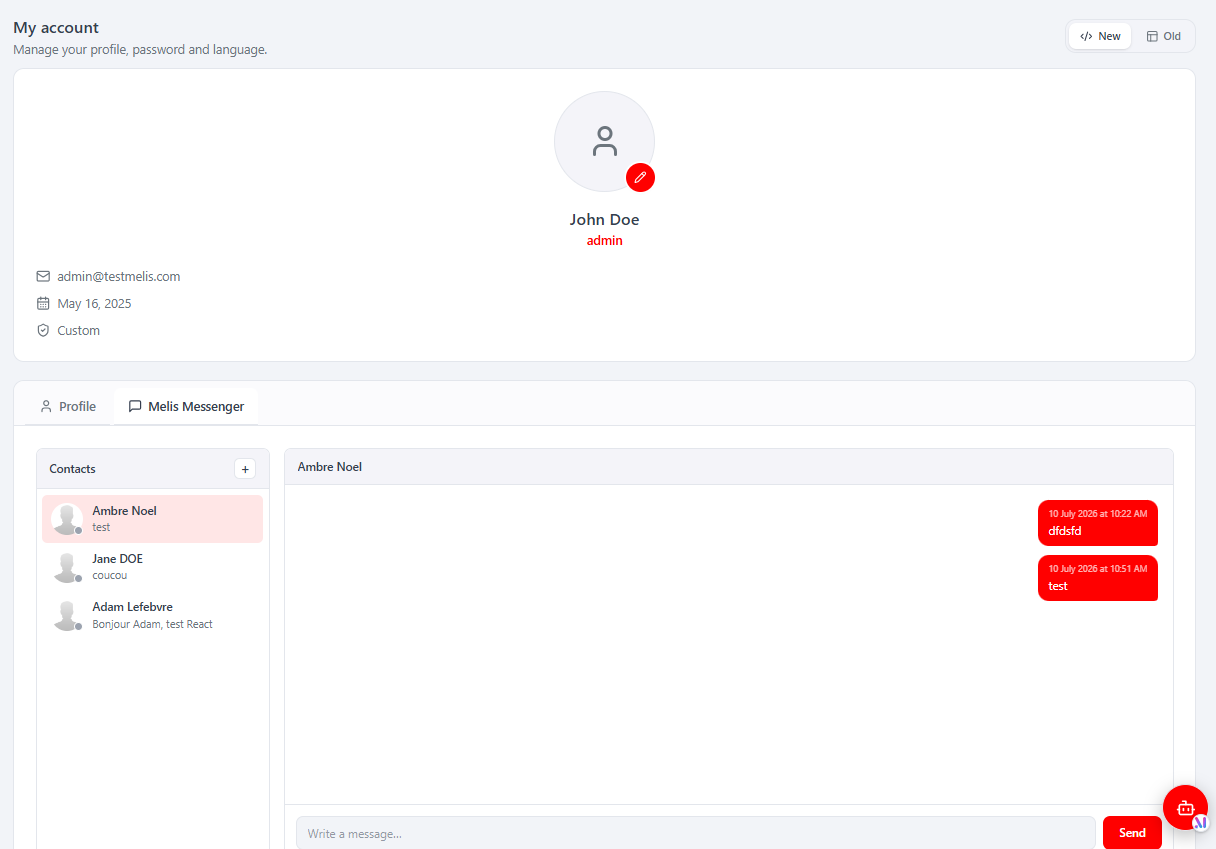

The Melis Messenger tab — inside My Account (chat-bubble icon, next to Profile). A native React panel showing your Contacts (conversations, most-recent first) beside the selected conversation thread (your bubbles on the right). A + button opens a user search to start a new conversation, and a composer at the bottom lets you write and Send. Opening a conversation marks it read, so the header badge drops immediately.

The badge and the open thread refresh on a timer, when the browser tab regains focus, and as soon as you open a conversation. On a narrow screen (~under 560px) the tab collapses to one column at a time (Contacts or conversation) with a back button, like a mobile chat app. A New / Old toggle on the account page falls back to the legacy profile in an iframe; in that case the header icon drives the iframe DOM to open the legacy Messenger tab instead.

The brick

The React UI lives in ui-react/ and builds (Vite IIFE, React/ReactRouter externalised to the host globals) to public/ui-react/brick.js alongside brick.manifest.json. The manifest declares this is not a tool — note the nulls:

json

{ "id": "messenger", "route": null, "label": "Messenger",
  "forwardKey": null, "melisKey": null, "entry": "brick.js" }

ui-react/src/brick.tsx registers two host surfaces for the id messenger, both gated on module activation:

tsx

// 1) My-Account tab — modular extension point
window.__melisAccountTabs.push({
  id: 'messenger', label: 'Melis Messenger', icon: <ChatIcon />, order: 10,
  render: () => <MessengerTab />,
})
window.dispatchEvent(new CustomEvent('melis-account-tabs-changed'))

// 2) Topbar icon — the brick's Header widget
window.__melisRegisterBrick?.({ id: 'messenger', Header: MessengerHeader })

Component	Role
`brick.tsx`	Entry point. Registers the Header widget and pushes the My-Account tab.
`MessengerHeader.tsx`	Topbar icon + unread badge. Polls `getNewMessage` for the count, caches the last count in `sessionStorage` for instant paint, recounts on focus/visibility and on the `melis-messenger-unread-changed` event. Click opens My Account and pre-selects the Messenger tab.
`MessengerTab.tsx`	The native React chat panel: Contacts list, conversation thread, composer, "new conversation" user search. Reads/writes the legacy JSON endpoints; responsive; dispatches `melis-messenger-unread-changed` when it marks a conversation read.

Because the bundle externalises only react / react-dom / react-router-dom to the host globals (it cannot import Tailwind/shadcn/lucide/i18n), the components use inline styles with host CSS vars and an in-file {fr,en} dictionary keyed on document.documentElement.lang.

Endpoints reused

The module ships no config/react-api.php. Both React components call the existing legacy JSON endpoints of MelisMessenger\Controller\MelisMessengerController under /melis/MelisMessenger/MelisMessenger/…, sending X-Requested-With: XMLHttpRequest and credentials: 'include'.

Header (MessengerHeader.tsx) — the badge poller:

Method & URL	Purpose
`GET …/getNewMessage`	Unread messages → `{ messages: [...] }`; badge count = `messages.length`.
`GET …/getMsgTimeInterval`	Platform polling interval `{ interval }` (default 60 000 ms).

The header caps polling to min(interval, 10 000 ms) so the always-visible badge stays responsive.

My-Account tab (MessengerTab.tsx) — the chat panel:

Method & URL	Purpose
`GET …/getContactListByDate`	Conversations sorted by last-message date → `{ data: ContactRow[] }`.
`GET …/getConversation/:id?limit=&offset=`	A conversation's messages → `{ data: Message[], user_id }`.
`GET …/getUserListForConversation?search=`	User search for "new conversation" → `{ data: UserRow[] }`.
`POST …/createConversation`	Start a conversation (`mbrids=<userId>`) → `{ conversationId }`.
`POST …/saveMessage`	Send a message (`msgr_msg_id`, `msgr_msg_cont_message`) → `{ success }`.
`POST …/updateMessageStatus`	Mark the open conversation read (`id=<convoId>`) — fired on open/reply.
`GET …/getMsgTimeInterval`	Polling interval for the thread refresh.

getContactListByDate and getUserListForConversation are used specifically by the React tab (date-sorted list + server-side user search); the older getContactList / renderMessenger* actions still drive the legacy tool and are left unchanged.

Key services

Alias	Role
`MelisMessengerService`	Public service for messaging: send and read messages/conversations.
`MelisMessengerMsgTable`	Table gateway for `melis_messenger_msg`.
`MelisMessengerMsgContentTable`	Table gateway for `melis_messenger_msg_content`.
`MelisMessengerMsgMembersTable`	Table gateway for `melis_messenger_msg_members`.

MelisMessengerService methods fire melismessenger_*_start / *_end events for each read/list call (e.g. melismessenger_get_conversation_start / _end):

Method	Role
`saveMsg($data)`	Create/update a conversation; returns the conversation id.
`saveMsgMembers($data)`	Attach a user to a conversation.
`saveMsgContent($data)`	Save a message inside a conversation.
`getConversation($id)`	Fetch a full conversation by id.
`getConversationWithLimit($id, $limit, $offset)`	Paginated conversation fetch.
`getNewMessage($id)`	Fetch new/unread messages since the last poll.
`updateMessageStatus($data, $msg_id, $user_id)`	Mark messages read for a user.
`getContactList($convo_id, $user_id)`	Resolve the contacts of a conversation.
`prepareConversationId($userId)`	List conversation ids a user belongs to.
`getUserRightsForMessenger()`	Check the current user's access rights to the module.

Database tables

Table	Holds
`melis_messenger_msg`	One row per conversation (`msgr_msg_id`, `msgr_msg_creator_id`, `msgr_msg_date_created`).
`melis_messenger_msg_members`	Users participating in a conversation (`msgr_msg_mbr_id`, `msgr_msg_id`, `msgr_msg_mbr_usr_id`).
`melis_messenger_msg_content`	Individual messages (`msgr_msg_cont_id`, sender, message text, date, status).

Capabilities

None. The module has no config/react.capabilities.php and no rights-bearing menu node — it is not a menu tool. Access is guarded by the legacy endpoints requiring an authenticated back-office session, and the surfaces are gated on module activation. There are no MelisCan(...) capability strings to declare or check for Messenger.

Example

php

$messenger = $this->getServiceManager()->get('MelisMessengerService');

// Create a conversation, add a member, then post a message
$convoId = $messenger->saveMsg($data);
$messenger->saveMsgMembers(['msgr_msg_id' => $convoId, 'msgr_msg_mbr_usr_id' => $userId]);
$messenger->saveMsgContent(['msgr_msg_id' => $convoId, 'msgr_msg_cont_message' => 'Hi']);

// Read messages
$thread = $messenger->getConversation($convoId);
$page   = $messenger->getConversationWithLimit($convoId, 10, 0);
$new    = $messenger->getNewMessage($convoId);

// Mark read
$messenger->updateMessageStatus($data, $msgId, $userId);

Key files

Concern	Path
Module config (routes, services, controllers)	`vendor/melisplatform/melis-messenger/config/module.config.php`
Interface declaration (legacy Profile tab + header icon)	`vendor/melisplatform/melis-messenger/config/app.interface.php`
Forms config	`vendor/melisplatform/melis-messenger/config/app.forms.php`
Tools config	`vendor/melisplatform/melis-messenger/config/app.tools.php`
Public service	`vendor/melisplatform/melis-messenger/src/Service/MelisMessengerService.php`
Main controller (JSON endpoints reused by React)	`vendor/melisplatform/melis-messenger/src/Controller/MelisMessengerController.php`
Table gateways	`vendor/melisplatform/melis-messenger/src/Model/Tables/`
React brick (Header widget + My-Account tab)	`vendor/melisplatform/melis-messenger/ui-react/src/`
Built brick + manifest	`vendor/melisplatform/melis-messenger/public/ui-react/brick.js`, `brick.manifest.json`
DB install delta	`vendor/melisplatform/melis-messenger/install/`
