MelisCmsLinkCheck

Link tester that crawls a page (and optionally its sub-pages or internal links) and records every broken link and broken image, keeping one scan log per page. Package melisplatform/melis-cms-link-check.

Purpose

MelisCmsLinkCheck is the Melis link tester. It crawls a page — optionally following its sub-pages or its internal links — and records every broken link and broken image it finds, saving one scan log per scanned page. The crawl itself (curl, validation, log insertion, translations) lives server-side in the Laminas service MelisCmsLinkCheckService::executeTest(); the React back-office is a presentation layer that reads and launches scans through the module's react-api endpoints.

In the v6 React back-office (/melis-react) the module ships a native full-React brick with two surfaces:

• A left-menu Link tester tool — a read-only viewer of past scan results, a Launch a scan modal and a per-row error report, with a New / Old toggle that falls back to the classic tool in an iframe.
• A Link Checker tab in the React CMS page editor that launches and reports a scan scoped to the one page being edited.

Enable it

Add to config/melis.module.load.php:

return [
    'MelisCmsLinkCheck',
];

Both surfaces are activation-gated: they appear only if the module is active, discovered by the host via GET /melis/react-api/react-modules (which lists active modules shipping a brick.manifest.json). Deactivating the module removes both the menu tool and the page-editor tab.

React back-office at a glance

Item	Value
Brick kind	Native full-React (with a New/Old legacy-iframe fallback) + a page-editor tab
Brick id	cms-link-check
Manifest route	/melis-cms-link-check/results
label	Testeur de liens (Link tester)
forwardKey	MelisCmsLinkCheck/MelisCmsLinkCheckList
melisKey (menu / Old-view iframe / rights node)	meliscmslinkcheck_tool
Page-tab key (= its capability)	meliscmslinkcheck_page_link_check_tab
API base	/melis/react-api/cms-link-check
React-api controller	MelisReactApiLinkCheckController (invokable MelisReactApiLinkCheck)
Table (owned)	melis_cms_link_check_logs
Scan service	MelisCmsLinkCheckService::executeTest(...)

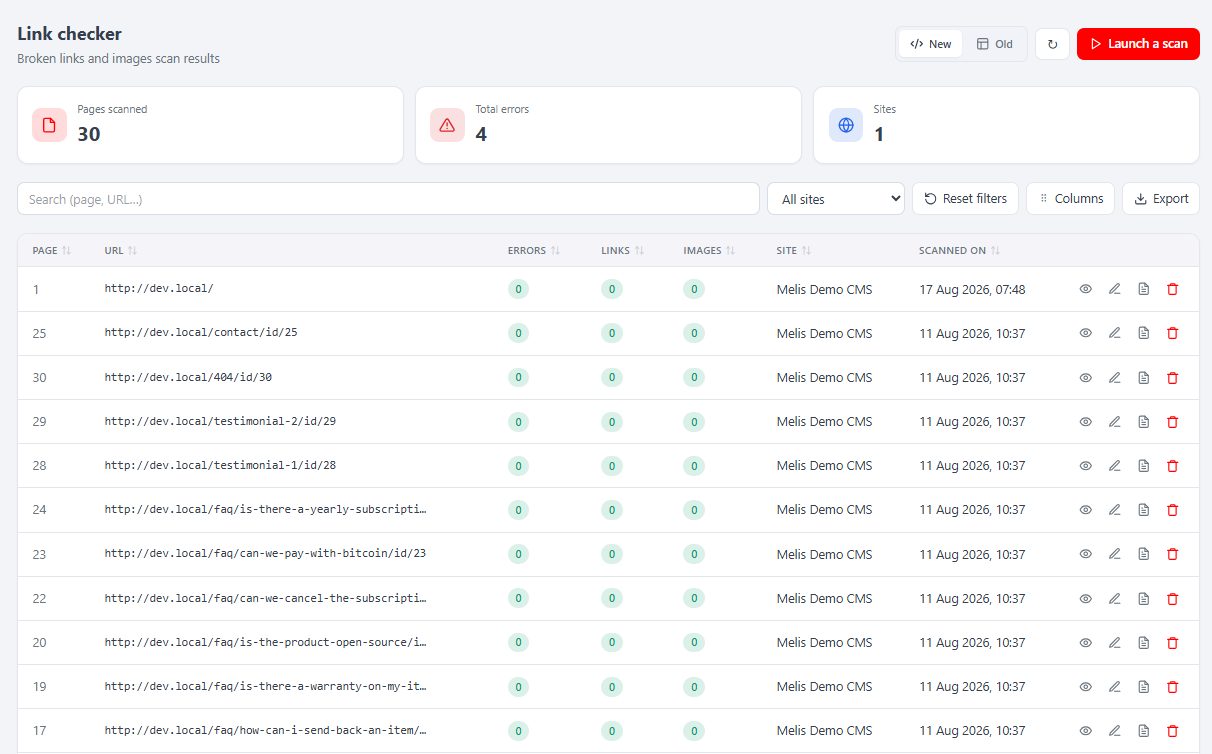

The Link tester tool

Left sidebar → the Link tester (Testeur de liens) node opens the tool as a top tab. The New view lists every scan log on the platform, one row per scanned page.

The list has KPI cards (Pages scanned, Total errors, Sites), a search box (matches page URL, page id, site name/label), a site filter (only sites that have logs), Reset filters, a Columns manager (show/hide/reorder columns, saved locally) and an Export. Click a column header to sort (default: newest scan first). Error counts are shown as badges — green when 0, red otherwise (Errors = total, Links, Images).

Each row has four actions:

Action	Icon	Purpose
View front	eye	Opens the scanned page URL in a new tab.
Edit page	pencil	Opens the page in the React CMS page editor and switches to it.
Report	document	Opens the per-page error report modal.
Delete	trash	Removes that scan log (needs the delete capability).

The top-right New / Old toggle switches the whole tool between the React viewer (default) and the classic tool rendered in an iframe (/melis/react-tool-page?key=meliscmslinkcheck_tool), which can also be used to launch scans the legacy way.

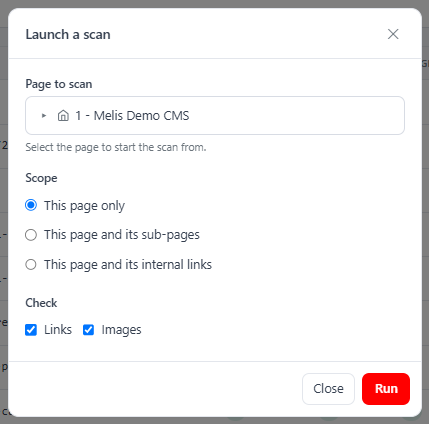

Launching a scan

The red Launch a scan button (shown if you have the launch capability) opens a modal.

Pick the starting page from the lazy CMS page tree, choose a scope and what to check, then Run. The scan crawls the page(s), records the results, refreshes the list and posts a notification.

• Scope — This page only / This page and its sub-pages / This page and its internal links (sent as follow: '1' | '2' | '3').
• Check — Links and/or Images (sent as options: ['LINK', 'IMG']).

Reading a page's report

The Report action on a row opens the detailed errors for that scan log.

A clean page shows "✓ No error recorded for this page." A page with errors shows a table: Type (LINK / IMG badge) · URL · Details (the failure). The detail comes from the parsed XML lcl_errors column, decoded into an errorList of { url, type, details }.

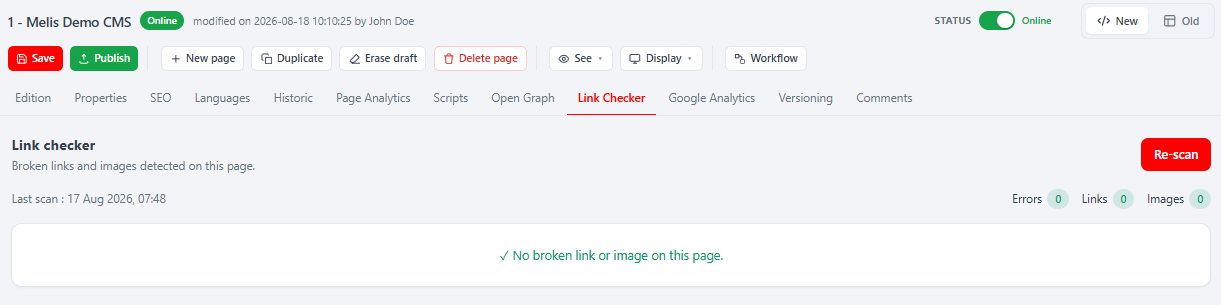

Checking one page from its editor

Open a page in the React CMS page editor and click the Link Checker tab. It shows the last scan of that page (date, Errors / Links / Images badges and the detailed error table or a clean message) with a Re-scan button — or Launch a scan if the page was never scanned — that runs a scan for that page only.

The tab is contributed to the CMS page editor via the host bridge window.__melisRegisterPageTab (owned by the CmsPage brick), keyed meliscmslinkcheck_page_link_check_tab; CmsPage renders it with { idPage }.

React API — endpoints

Routes live in config/react-api.php, served by MelisCmsLinkCheck\Controller\MelisReactApiLinkCheckController. All under /melis/react-api/cms-link-check, with the contract { success, data, error }. Every fetch sends X-Requested-With: XMLHttpRequest and credentials: 'include'.

Method & URL	Action	Purpose
GET /cms-link-check	list	Scan logs (keyset: limit, search, site, sort, dir, after) → {items,total,nextCursor}
GET /cms-link-check/stats	stats	KPI {total, errors, sites}
GET /cms-link-check/sites	sites	Site filter options (only sites present in logs)
POST /cms-link-check/launch	launch	Run a scan ({pageId, follow, options}) → {status,message,logIds,pagesVisited}
GET /cms-link-check/by-page/:idPage	byPage	Last scan of ONE page (page-editor tab); data: null if never scanned
DELETE /cms-link-check/delete/:id	delete	Delete a scan log
GET /cms-link-check/:id	get	One log + its parsed errorList:[{url,type,details}]

Route order matters: /stats, /sites, /launch, /by-page/:idPage and /delete/:id are declared before the catch-all /:id.

The list, stats, sites, get, by-page and delete actions read melis_cms_link_check_logs directly via parameterised SQL (Laminas\Db\Adapter\AdapterInterface). Only launch delegates to MelisCmsLinkCheckService::executeTest([...]) — the real crawl — wrapped in ob_start() / ob_end_clean() so legacy warnings do not corrupt the JSON. The Launch-a-scan page picker reuses an existing legacy endpoint (no new backend): GET /melis/MelisCms/TreeSites/get-tree-pages-by-page-id?nodeId=<id> (nodeId=-1 → root sites).

Capabilities

Declared in config/react.capabilities.php under two rights-bearing nodes:

return [
  'melisReactToolCapabilities' => [
    'meliscmslinkcheck_tool' => ['list', 'launch', 'delete', 'export'],
    'meliscms_page' => [
      'tabs' => [
        ['key' => 'meliscmslinkcheck_page_link_check_tab', 'label' => 'tr_meliscmslinkcheck_page_link_check_tab'],
      ],
    ],
  ],
];

• Tool caps — list (the whole read-only viewer: list/stats/sites/report), launch (run a scan), delete (delete a log), export (the Export button; export reuses the list endpoint). In React they gate the UI via MelisCan('meliscmslinkcheck_tool', cap); server-side each action is guarded by denyUnlessAccess() then denyUnlessCan('list'|'launch'|'delete').
• Page-tab cap — the key meliscmslinkcheck_page_link_check_tab must equal the key passed to window.__melisRegisterPageTab; it is the tab's capability. Without this declaration the CMS-page caps whitelist hides the tab button even for an admin. The tab's by-page endpoint is gated by session auth only (it is a sub-feature of the page editor); the button by this cap.

Database tables

Table	Role
melis_cms_link_check_logs	One scan log per scanned page: broken-link / broken-image counts plus the detailed error list stored as XML in the lcl_errors column.

Legacy controllers (Old view)

Used by the New/Old iframe fallback and the classic tool, not by the React viewer:

Controller	Role
MelisCmsLinkCheckListController	Classic tool page + its results DataTables.
MelisCmsLinkCheckLaunchController	Classic launch modal / form (page + scope + check).
MelisCmsLinkCheckPageLinkCheckController	Classic page-edition Link Check tab (renderPageLinkCheckAction, { idPage }).

Key files

Concern	Path
React-api routes + invokable	config/react-api.php
Capabilities	config/react.capabilities.php
Legacy tool config	config/app.*.php
React-api controller	src/Controller/MelisReactApiLinkCheckController.php
Scan service	src/Service/MelisCmsLinkCheckService.php
React brick source	ui-react/src/ (brick.tsx, LinkCheckPage.tsx, linkcheck-api.ts, …)
Built brick + manifest	public/ui-react/brick.js, public/ui-react/brick.manifest.json
