MelisLogin2fa

Two-factor authentication core / orchestrator for Melis logins — after username + password it requires a one-time code and delegates delivery to pluggable channel modules. Package melisplatform/melis-login-2fa.

Purpose

MelisLogin2fa is the 2FA orchestrator for Melis. After a user passes username/password, it intercepts the login (via melis_core_auth_pre_success), checks whether 2FA is active for the current platform and site/module, picks a delivery channel, and holds the session un-finalised until a valid 6-digit code is entered. It does not send the code itself — delivery is delegated to pluggable channel modules (email, SMS) via the canSend / sendUserCode event contract. The bundled email channel (melis-login-2fa-email) is a required dependency and is always available as a locked fallback.

Enable it

Add to config/melis.module.load.php:

return [
    'MelisLogin2fa',
];

melisplatform/melis-login-2fa-email is a required dependency and must also be loaded (it installs as a pair with this module). PHP ^8.1|^8.3.

In the React back-office

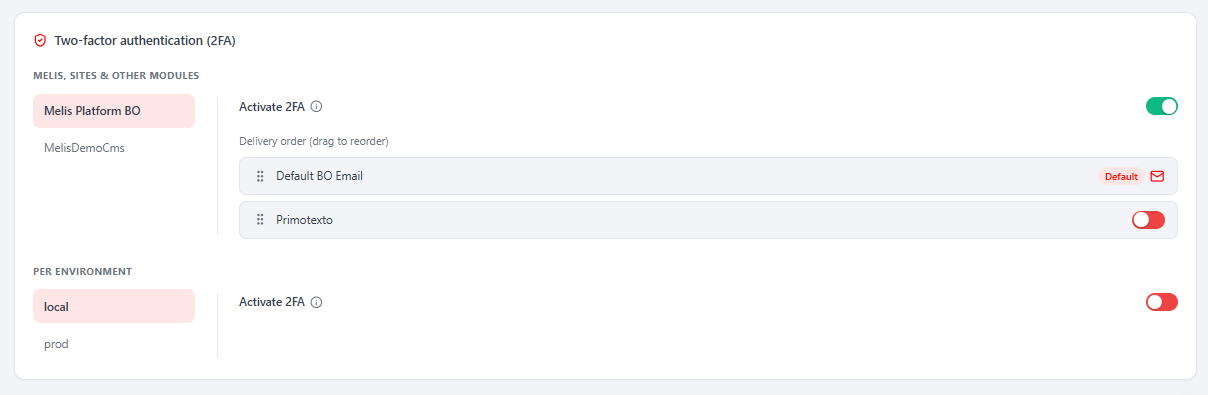

This module ships a contribution-only brick — it has no left-menu tool and no route of its own. Instead it registers an OtherConfigSection that MelisCore's native Other config page renders after its own cards. You find 2FA at System configuration → Other config, as a "Two-factor authentication (2FA)" card at the bottom. The card appears only when the module is active (discovered via GET /melis/react-api/react-modules, then the bundle is prefetched and evaluated at boot).

The card has two blocks:

Block	What it controls

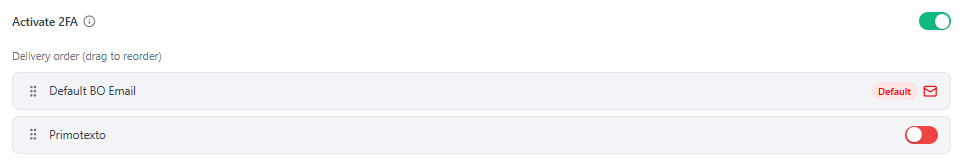

Melis, sites & other modules	A left tab column of targets (Melis Platform BO, plus each site when MelisCms is active). For the selected target: an Activate 2FA switch and a "Delivery order (drag to reorder)" list. Default BO Email is pinned (Default tag + mail icon, always active, can't be toggled off). Other methods (e.g. Primotexto/SMS) have an on/off switch. Drag rows to set the priority/fallback chain.
Per environment	A tab column of platforms (local, prod …), each with its own Activate 2FA switch that writes plf_2fa_active.

Every switch, toggle and reorder saves immediately. 2FA only runs when both a target and the current environment are active. The React section carries no advanced-rights (capability) declaration — reaching it already requires access to the Other config tool.

The login challenge itself is not a React brick: when 2FA applies, the login is gated on a standalone code-entry page served by Login2faController (the same page for /melis and /melis-react). The user sees the masked target (e.g. jo****@…), enters the 6-digit code, and can Resend after a cooldown. Wrong codes are limited, too many failures lock the account, and codes expire after 10 minutes.

Key services

Service alias	Role
MelisLogin2faService	Generates the 6-digit code (generate2faCode()), a 64-hex tracking hash (generateHash()), and validity timestamps (getValidityDate($minutes)).
MelisLogin2faConfigService	Reads and writes per-BO / per-site 2FA config. Key methods: getModuleConfig(), getAllModuleConfigs(), getAllSiteConfigs(), getAvailable2faModules() (fires melis_login_2fa.collect_available_modules), mergeAvailableModulesWithConfig(), filterOnlyInstalledModules(), saveItem().
MelisLogin2faTranslationService	Locale-aware translation helpers (translateByLocale, boTranslate, …) so code-delivery messages match the user's language.
MelisLogin2faControllerPlugin	Exposes verifyUserCode($userId, $code) — purges expired codes, enforces the try limit, locks the account on too many failures, clears the record on success.
MelisLogin2faVerifierPlugin (alias melisLogin2faVerifier)	Gate plugin — keeps the session un-finalised until a valid code is submitted.

React API

Routes live in config/react-api.php (merged via Module::getConfig() under MelisReactApi's melis-react-api route). Controller MelisLogin2faReactApiSettingsController (invokable alias MelisLogin2faReactApiSettings), all under /melis/react-api/login2fa-settings, contract { success, data, error }.

Method & URL	Purpose
GET /melis/react-api/login2fa-settings	All settings → { moduleConfigs[], sites[], siteConfigs[], platforms[] }. Each row's module_list is passed through mergeAvailableModulesWithConfig() so a never-saved row still lists every installed method. Site rows only if MelisCms is active.
POST /melis/react-api/login2fa-settings/save-config	Save one melis_core_login_2fa_config row: { mcl2cf_id?, mcl2cf_module_name, mcl2cf_site_id, mcl2cf_activate_2fa, module_list[] } → delegates to MelisLogin2faConfigService::saveItem().
POST /melis/react-api/login2fa-settings/save-platform	Save one platform's flag: { plf_id, plf_2fa_active }. Writes MelisCoreTablePlatform; 422 if plf_id missing.

This react-api is a thin JSON mirror of the legacy Other-config tabs — same rows, same saveItem, JSON instead of rendered phtml. Actions are gated by authentication only (denyUnlessAuthenticated(), 401 otherwise); the module ships no config/react.capabilities.php and declares no advanced rights, so do not invent capability strings for it.

Database tables

Table	Holds
melis_core_login_2fa_codes	One-time codes: user id, email, type (melis-backoffice or site id), the 6-digit code, session hash, expiry date, and failed-attempt counter with timestamps (mcl2c_try, mcl2c_try1/2/3_date).
melis_core_login_2fa_config	Per-BO / per-site config rows: mcl2cf_module_name or mcl2cf_site_id, mcl2cf_activate_2fa, mcl2cf_module_list (JSON ordered channel list).

melis_core_platform gains a plf_2fa_active column (added by the module's dbdeploy).

Configuration tunables

Declared under the melis_login_2fa config key:

Key	Default	Description
max_tries	3	Failed code attempts before the account is locked (usr_status = 0).
code_validity_minutes	10	Minutes until a code expires.
request_code_cooldown_seconds	60	Minimum seconds between resend requests.

The channel event contract

The core never calls a channel directly — it fires events that channels answer. To add a delivery method, implement listeners for:

Event	Direction	Purpose
melis_login_2fa.collect_available_modules	core → channels	Channels append ['module'=>'…', 'label'=>'…'] so they appear in the admin method list.
canSend	core → channels	Each channel returns ['<module-name>' => bool] indicating whether it can reach the user.
sendUserCode	core → channels	The first channel in orderedModules that can send creates/reuses the code and delivers it, then sets sent=true and calls stopPropagation.

Example

// Building a custom delivery channel — attach these two listeners in your module:

'canSend' => fn($e) => ['my-channel' => $canIReach($e->getParam('user'))],

'sendUserCode' => function ($e) {
    if (!empty($e->getParam('sent'))) return;                              // already sent
    if (($e->getParam('orderedModules')[0] ?? null) !== 'my-channel') return; // not my turn

    // Create/reuse the code via the core's service + table:
    // MelisLogin2faService::generate2faCode() + MelisLogin2faCodesTable

    // Deliver via your transport, then signal completion:
    $e->setParam('sent', true);
    $e->stopPropagation(true);
    return ['sent' => true, 'hash' => $hash, 'message' => 'sent to ' . $maskedTarget];
},

// Also respond to collect_available_modules so the admin can enable/order your channel.

Key files

Concern	Path
Module bootstrap	vendor/melisplatform/melis-login-2fa/src/Module.php (getConfig() merges react-api.php)
Module config (services, routes, tunables)	vendor/melisplatform/melis-login-2fa/config/module.config.php
React-api routes	vendor/melisplatform/melis-login-2fa/config/react-api.php
Gate-bypass route list	vendor/melisplatform/melis-login-2fa/config/excluded.routes.php
Main login listener (melis_core_auth_pre_success)	vendor/melisplatform/melis-login-2fa/src/Listener/MelisLogin2faMainListener.php
Config-save listener	vendor/melisplatform/melis-login-2fa/src/Listener/MelisLogin2faListener.php
Resend listener	vendor/melisplatform/melis-login-2fa/src/Listener/MelisLogin2faRequestCodeListener.php
React-api controller	vendor/melisplatform/melis-login-2fa/src/Controller/ReactApi/MelisLogin2faReactApiSettingsController.php
Controller (verify routes)	vendor/melisplatform/melis-login-2fa/src/Controller/Login2faController.php
Verify plugin	vendor/melisplatform/melis-login-2fa/src/Controller/Plugin/MelisLogin2faControllerPlugin.php
Gate (verifier) plugin	vendor/melisplatform/melis-login-2fa/src/Controller/Plugin/MelisLogin2faVerifierPlugin.php
Core service	vendor/melisplatform/melis-login-2fa/src/Service/MelisLogin2faService.php
Config service	vendor/melisplatform/melis-login-2fa/src/Service/MelisLogin2faConfigService.php
Codes table	vendor/melisplatform/melis-login-2fa/src/Model/Tables/MelisLogin2faCodesTable.php
Config table	vendor/melisplatform/melis-login-2fa/src/Model/Tables/MelisLogin2faConfigTable.php
React brick source	vendor/melisplatform/melis-login-2fa/ui-react/src/ (brick.tsx, Login2faOtherConfigSection.tsx)
Built brick + manifest	vendor/melisplatform/melis-login-2fa/public/ui-react/brick.js · brick.manifest.json
DB deploy	vendor/melisplatform/melis-login-2fa/install/dbdeploy/

Metadata

Item	Value
Package	melisplatform/melis-login-2fa
Type	melisplatform-module · category core · dbdeploy: true
Namespace	MelisLogin2fa\ (PSR-4 → src/) · module name MelisLogin2fa
React brick	Contribution-only (id melis-login-2fa, route/forwardKey/melisKey = null); registers an OtherConfigSection
Requires	melisplatform/melis-login-2fa-email ^5.3 · PHP ^8.1|^8.3

See also: MelisLogin2faEmail · MelisCore
