MelisDashboardPluginCreator

A step-by-step wizard that scaffolds a new back-office dashboard plugin (widget) into a new or existing module, now delivered as a native React brick. Package melisplatform/melis-dashboard-plugin-creator.

Purpose

MelisDashboardPluginCreator is a code-generation assistant: a 5-step wizard that generates a ready-to-use dashboard widget — its controller, view, config, assets and translations — and wires it into the target module. You choose a single-tab or multi-tab widget, a destination (create a brand-new module or extend an existing one), per-language titles/descriptions, an icon and a thumbnail; the tool then writes the files and (optionally) activates the plugin.

The generated widget extends MelisCore\Controller\DashboardPlugins\MelisCoreDashboardTemplatingPlugin and is declared under the melis_dashboardplugin interface, so it appears on the back-office dashboard. The module depends on melis-core and melis-tool-creator (the latter is reused to scaffold the new module). For the concepts behind dashboard plugins, see Plugins; for back-office tools in general, see Create a tool.

Enable it

It is a standard Laminas module. Add it to config/melis.module.load.php:

return [
    // …
    'MelisDashboardPluginCreator',
];

Install via Composer (composer require melisplatform/melis-dashboard-plugin-creator); melis-core and melis-tool-creator are pulled in automatically. No database is required.

The tool writes files on disk, so the following must be writable by the web server (checked at runtime, surfaced to the wizard as context.blocking[]): config/melis.module.load.php, the module/ directory, and the temp-thumbnail path <DOCUMENT_ROOT>/dpc/temp-thumbnail/ (configured in config/app.tools.php under melisdashboardplugincreator/datas/plugin_thumbnail/path).

React back-office

In the React back-office (/melis-react) the tool ships as a native full-React brick — a real React wizard calling a JSON react-api, with a New / Old toggle that falls back to the legacy jQuery tool in an iframe. All the real work stays server-side: validation reuses the legacy Laminas forms and generation calls MelisDashboardPluginCreatorService. React is presentation plus API calls.

Item	Value
Brick kind	Native full-React (5-step wizard, with a New/Old legacy-iframe fallback)
Brick id	dashboard-plugin-creator
Manifest route	/melis-core/dashboard-plugin-creator (fallback mount)
label	Dashboard Plugin Creator
forwardKey	MelisDashboardPluginCreator/DashboardPluginCreator
melisKey	melisdashboardplugincreator_tool
subTabs / persistent	false / true
API base	/melis/react-api/dpc

The brick is discovered by GET /melis/react-api/react-modules and appears only if the module is active in config/melis.module.load.php. It is persistent: the wizard is mounted once and its 5 steps are CSS-shown/hidden panes, so leaving the tool tab and coming back loses neither the draft nor the current step. A Restart button (top toolbar) clears the session draft and temporary thumbnail. Switching the New / Old toggle to Old renders the legacy controller in an iframe (/melis/react-tool-page?key=melisdashboardplugincreator_tool) and resets the shared session draft; the wizard warns first if a draft exists.

The 5-step wizard

Step	React component	What you do
1 — Plugin	Step1Plugin	Plugin name, View type (Single / Multi-tabs, 2–25 tabs), Plugin destination (New module + name, or Existing module dropdown).

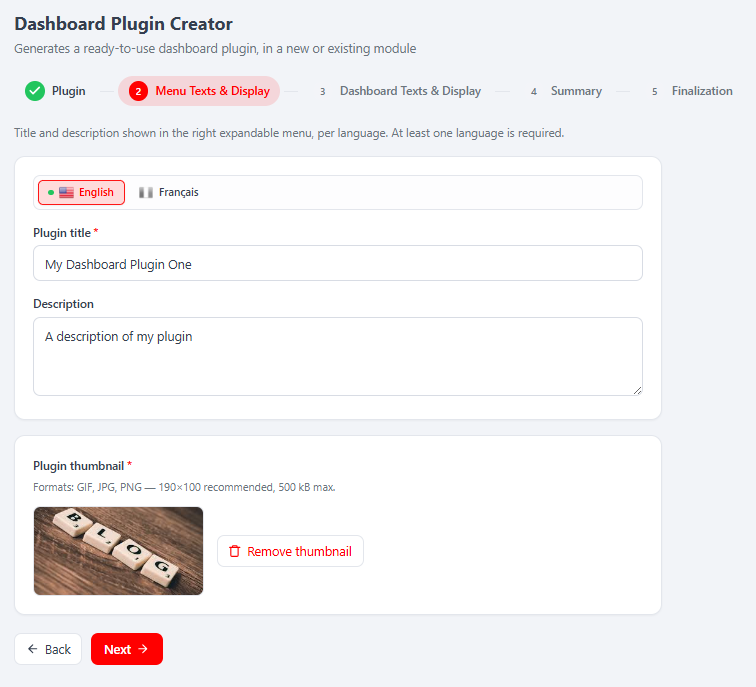

2 — Menu Texts & Display	Step2Menu	Per-language Plugin title + Description (language tab bar, at least one required); upload the required Plugin thumbnail (GIF/JPG/PNG, ~190×100, ≤500 kB).
3 — Dashboard Texts & Display	Step3Dashboard	Per-language card title, pick the Plugin icon from a grid; multi-tab plugins pick one icon per tab.

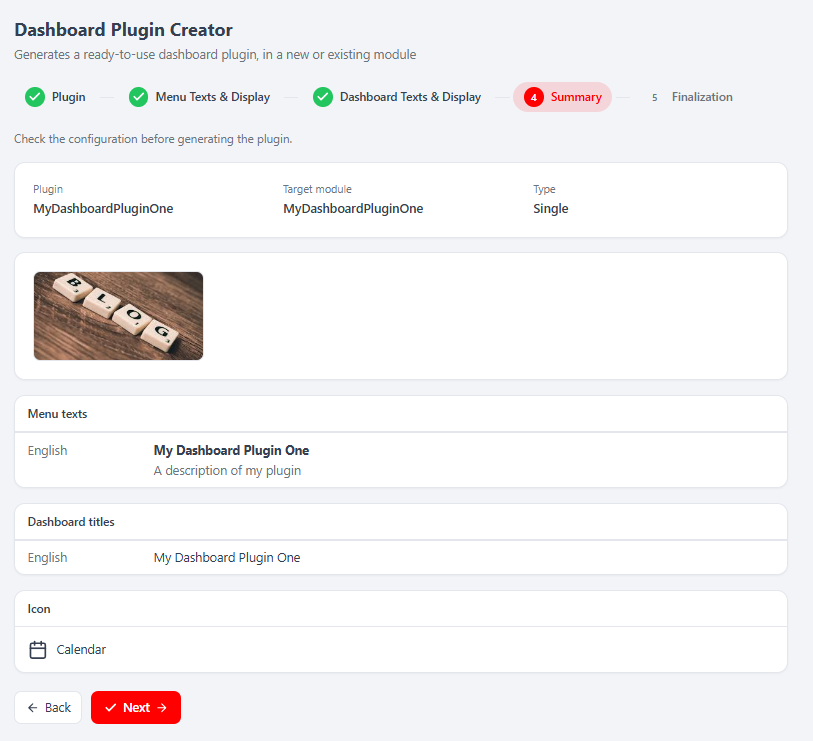

4 — Summary	Step4Summary	Read-only recap of steps 1→3 + target module (fetched from /dpc/summary); nothing is written.

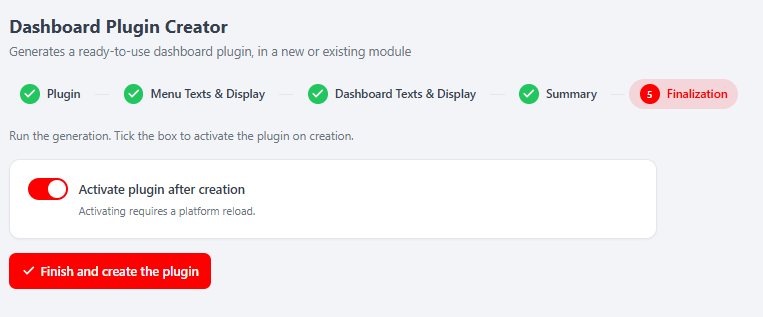

5 — Finalization	Step5Finalize	Activate plugin after creation toggle (on by default) + Finish and create the plugin → generation; on activation a countdown reloads the platform.

Step 5 is the only mutating operation. Business rules (reserved PHP keyword, module already exists, plugin name/title already taken) are validated server-side against the legacy Laminas forms; the React components only render the returned per-field messages.

React API

Routes live in config/react-api.php, served by MelisReactApiDashboardPluginCreatorController. All under /melis/react-api/dpc, contract { success, data, error }. A validation failure is not an HTTP error — POST /dpc/step/:step returns { success:true, data:{ valid:false, errors:{…} } } so the UI can show per-field messages.

Method & URL	Purpose
GET /dpc/context	Preflight (FS-writable → blocking[]), step meta, languages, existing modules, icons, tab min/max, thumbnail limits
GET /dpc/state	Current wizard state from the shared session (restores the UI)
POST /dpc/reset	Restart: clears session draft + temporary thumbnail
POST /dpc/step/:step (1–3)	Validate + persist a step → { valid, errors }
POST /dpc/thumbnail	Multipart upload of the plugin thumbnail
POST /dpc/thumbnail/remove	Remove the thumbnail
GET /dpc/summary	Read-only recap of steps 1→3 + target module
POST /dpc/generate	Generate the plugin → { generated, module, plugin, restartRequired, notices }

const BASE = '/melis/react-api/dpc'

// validate + save step 1
await postJson('/step/1', {
  dpc_plugin_name: 'SalesOverview', dpc_plugin_type: 'single',
  dpc_plugin_destination: 'new_module', dpc_new_module_name: 'MyDashboards',
}) // → { valid: true, errors: {} }

// generate (step 5) — the ONLY mutating call
await postJson('/generate', { dpc_activate_plugin: true })
// → { generated:true, module:'MyDashboards', plugin:'SalesOverview', restartRequired:true }

The controller does not reimplement the tool's logic: validation rebuilds the legacy Laminas forms from config/app.tools.php (getFormMergedAndOrdered), and state is written into the same session container as the legacy tool (dashboardplugincreator), which the service reads in its constructor.

Capabilities

Declared in config/react.capabilities.php under the rights-bearing node melisdashboardplugincreator_tool. Semantics are default-allow (an undeclared cap is permitted, so legacy roles keep working). Flattened capability strings:

Tab	Actions	Guards
wizard	edit	Configure/save steps 1→3 (without wizard.edit the whole wizard is read-only)
thumbnail	create, delete	Upload / remove the thumbnail (step 2)
summary	list	Read the summary (step 4)
finalization	create	Generate the plugin (step 5) — the sensitive capability

Each controller action is guarded twice — access first (denyUnlessAccess), then the relevant capability (denyUnlessCan('finalization.create')). Hiding controls in React is UX only; the server refuses regardless.

Key services

Registered in config/module.config.php and aliased:

Service alias	Role
MelisDashboardPluginCreatorService	Generates the dashboard plugin from the data saved in the wizard session.

MelisDashboardPluginCreatorService extends MelisCore\Service\MelisGeneralService. Notable methods:

• generateDashboardPlugin() — the entry point: reads the session steps, resolves the target module/plugin name, then runs performGeneration(), rolling back on failure (rollbackPluginGeneration()). Fires melisdashboard_plugin_creator_service_generate_dashboard_plugin_start/end events.
• Internal generation steps: generateDashboardPluginConfig() (writes config/dashboard-plugins/<Plugin>Plugin.config.php), generateDashboardPluginController(), generateDashboardPluginView() (single- or multi-tab template), generateDashboardPluginAssets() (CSS/JS + copies the thumbnail), setTranslations() (per-language menu/title keys), updateModuleConfig() (injects template_map + controller_plugins) and updateModuleFile() (adds the config include to Module.php).
• Helpers: getModuleExistingPlugins() / getExistingTranslatedPluginTitle() (duplicate-name checks), getTempThumbnail(), generateFile(), generateModuleNameCase(), removeDir().

When the destination is a new module, generation delegates module creation to melis-tool-creator (MelisToolCreatorService::createTool() with a blank tool), then activates it (ModulesService::activateModule()) and invalidates the module-paths and dashboard-menu caches. Activation requires a platform reload.

Front office

This module has no front-office templating plugins or view helpers — it is a back-office-only tool. (The widgets it generates, however, are back-office dashboard plugins.)

Database tables

MelisDashboardPluginCreator defines no tables of its own — no install SQL or dbdeploy delta ships with it. All state is held in the wizard session; output is written directly to the target module's files.

Example

Trigger generation from the data already stored in the wizard session (this is what step 5 / POST /dpc/generate does under the hood):

/** @var \MelisDashboardPluginCreator\Service\MelisDashboardPluginCreatorService $dpc */
$dpc = $serviceManager->get('MelisDashboardPluginCreatorService');

$success = $dpc->generateDashboardPlugin(); // true on success, false (and rolled back) on failure

The generated widget follows the template in template/DashboardPluginController.php — a class extending MelisCoreDashboardTemplatingPlugin with an action that returns a ViewModel:

class MyModuleMyWidgetPlugin extends MelisCoreDashboardTemplatingPlugin
{
    public function __construct()
    {
        $this->pluginModule = 'mymodule';
        parent::__construct();
    }

    public function myWidget()
    {
        $view = new ViewModel();
        $view->setTemplate('my-module/dashboard-plugins/my-widget');
        return $view;
    }
}

Key files

Concern	Path
Module manifest	vendor/melisplatform/melis-dashboard-plugin-creator/composer.json
Routes / service / controller / form	vendor/melisplatform/melis-dashboard-plugin-creator/config/module.config.php
React API routes	vendor/melisplatform/melis-dashboard-plugin-creator/config/react-api.php
React capabilities	vendor/melisplatform/melis-dashboard-plugin-creator/config/react.capabilities.php
Wizard steps, forms, icons, thumbnail config	vendor/melisplatform/melis-dashboard-plugin-creator/config/app.tools.php
Generation service	vendor/melisplatform/melis-dashboard-plugin-creator/src/Service/MelisDashboardPluginCreatorService.php
React API controller	vendor/melisplatform/melis-dashboard-plugin-creator/src/Controller/MelisReactApiDashboardPluginCreatorController.php
Legacy wizard controller (Old view)	vendor/melisplatform/melis-dashboard-plugin-creator/src/Controller/DashboardPluginCreatorController.php
React brick source	vendor/melisplatform/melis-dashboard-plugin-creator/ui-react/src/
Built brick + manifest	vendor/melisplatform/melis-dashboard-plugin-creator/public/ui-react/
Generated-plugin templates	vendor/melisplatform/melis-dashboard-plugin-creator/template/

Related

This is the dashboard counterpart of melis-templating-plugin-creator (front-office templating plugins). To understand the artefacts it generates, read Plugins.
