MelisSql

Read-only SQL query runner in the React back-office Dev Tools, shipped as a native full-React brick. Package melisplatform/melis-sql.

Purpose

MelisSql is a small developer tool: a read-only SQL query runner. You type one SELECT statement, press Run, and the matching rows come back in a dynamic table — without leaving the back-office or opening an external database client. It connects using the platform's configured config['db'] credentials, so no connection details are entered.

In Melis v6 the tool ships as a native full-React brick in /melis-react: a real React page that calls one react-api JSON endpoint, with a New / Old toggle that can fall back to the legacy tool in an iframe. It is an admin-only diagnostic and inspection tool, not an end-user feature.

Enable it

Add to config/melis.module.load.php:

return [
    'MelisSql',
];

The tool appears in the React back-office only if the module is activated (modular brick discovery). Requires melisplatform/melis-core and PHP ^8.1|^8.3|^8.4.

Where it lives in /melis-react

Left sidebar → Dev Tools group → SQL. It opens as a top tab named SQL. The brick manifest declares route /melis-core/sql and maps the menu forwardKey MelisSql/List to it.

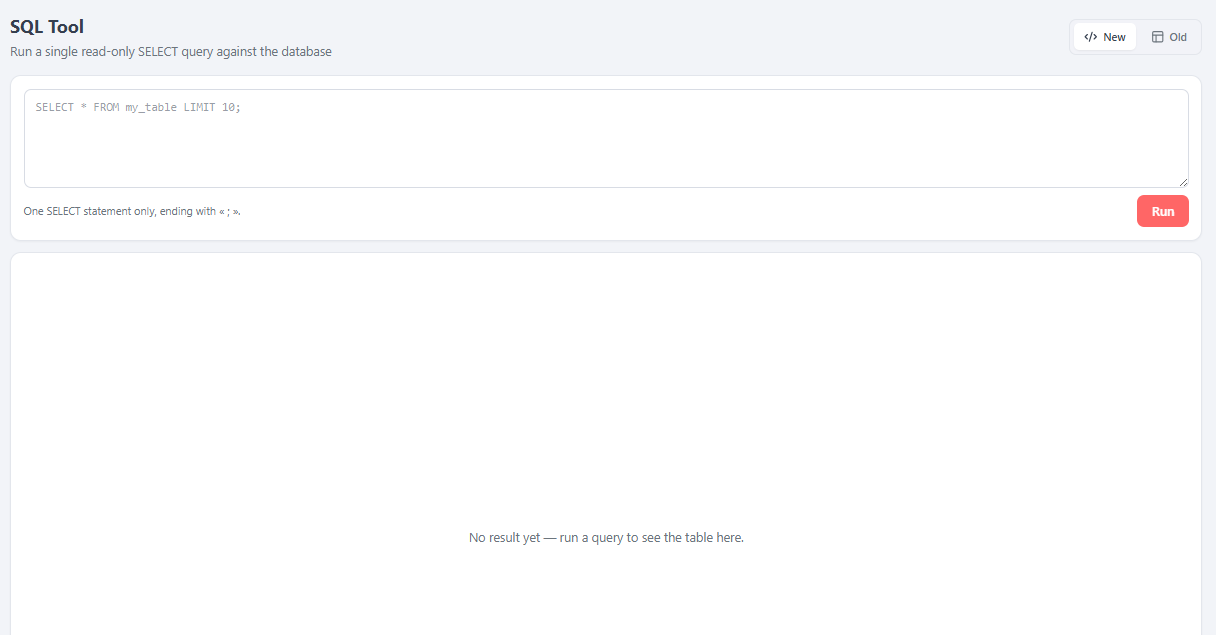

It is a single-screen tool: one page with a query box, a Run button and a dynamic results table. No sub-tabs, no drill-down.

Using the React tool

1. Type one SELECT statement in the query text area.
2. End it with a semicolon ;.
3. Click Run (or press Ctrl/Cmd + Enter).

Once a query returns, a results card appears with:

• A row count (e.g. 12 row(s); when searching, matches / total).
• A search box that filters returned rows across all columns (even hidden ones).
• A Columns button opening a column manager: two lists (Visible / Hidden), drag to hide/reorder, Reset to show them all. The layout is remembered per browser (localStorage, key melis-sql-cols-v1).
• The table itself: click a header to sort (ascending → descending); recognised image blobs (e.g. a user avatar) render inline as thumbnails.

New / Old toggle

A top-right New / Old toggle switches the whole tool between views. New (default) is the React UI; Old renders the legacy tool in a singleton iframe (/melis/react-tool-page?key=melissql_tool), positioned over an anchor via a ResizeObserver.

Query rules

The tool refuses anything that isn't a single read-only statement, showing the reason in a red banner:

Situation	What happens
Statement doesn't start with SELECT	Rejected — only SELECT queries are allowed.
No semicolon at the end	Rejected — a query should end with ';'.
More than one statement (several ;)	Rejected — only one query is allowed.
You are not a platform admin	Rejected — 403 Forbidden (admin-only).
The query can't be prepared / fails	The database error is shown in the banner.

React API endpoint

There is no config/react-api.php for this module. The single endpoint is reached through the module's catch-all back-office route (config/module.config.php, /melis/MelisSql[/:controller[/:action]]), which resolves the alias MelisSql\Controller\MelisSqlReactApi → MelisSqlReactApiController (declared under controllers.invokables). Contract: { success, data, error }.

Method & URL	Controller action	Purpose
POST /melis/MelisSql/MelisSqlReactApi/run	runAction	Validate + execute one read-only SELECT, return { columns, rows, rowCount }

Request body: { "query": "SELECT … ;" }.

// runSqlQuery(query) — the only call the brick makes (ui-react/src/sql-api.ts)
const res = await fetch('/melis/MelisSql/MelisSqlReactApi/run', {
  method: 'POST',
  headers: { 'X-Requested-With': 'XMLHttpRequest', 'Content-Type': 'application/json' },
  body: JSON.stringify({ query: 'SELECT * FROM melis_cms_page_tree;' }),
})
// → { success: true, data: { columns: string[], rows: Record<string,unknown>[], rowCount: number } }

MelisSqlReactApiController extends the legacy ListController to reuse its runQuery() guard verbatim (same mysqli connection from config['db'], same single-statement / SELECT-only validation, same translated error messages). It adds only JSON reshaping plus the safeguards below. Validation/DB errors return HTTP 200 with { success:false, error }; auth failures return 401/403; non-POST returns 405.

Capabilities

Declared in config/react.capabilities.php (merged via MelisSql\Module::getConfig()), keyed under the tool's melissql_tool melisKey:

return ['melisReactToolCapabilities' => [
    'melissql_tool' => ['run'],   // one internal cap: the Run (execute-query) action
]];

• run is a custom capability (not one of the standard list/create/edit/delete/export caps). It lets an admin see/consult the tool without necessarily being allowed to execute queries.
• Front gating. SqlPage calls useCaps('melissql_tool') → can('run') and only then renders the Run button and enables the Ctrl/Cmd + Enter shortcut.
• This file is declarative only (drives the Users → Rights checkboxes); the real enforcement is the access guard + usr_admin gate in the controller.

Security notes

• Admin-only. The controller runs denyUnlessAccess() (401 if unauthenticated, 403 if MelisCoreRights::canAccess('melissql_tool') fails), then additionally requires usr_admin. The melissql_tool right is delegatable, so rights alone are not enough — a non-admin gets 403 Forbidden.
• Read-only by construction. runQuery() rejects anything that isn't exactly one statement ending in ; and beginning with SELECT — no path to INSERT/UPDATE/DELETE/DDL. Treat any change to runAction/runQuery as security-sensitive.
• Sensitive-column masking. maskSensitiveColumns() masks the values of columns whose name matches password|passwd|pwd|mot_de_passe|secret|token|api_key with ••••••••, server-side, so a hash never reaches the browser on a SELECT *. It is a guardrail, not a boundary.
• Binary-safe JSON. sanitizeForJson() base64-encodes non-UTF-8 binary and emits recognised image blobs (e.g. melis_core_user.usr_image) as data:<mime>;base64,… URIs for inline rendering.
• Avoid unbounded SELECT * on very large tables: there is no server-side pagination.

Key files

Concern	Path
Catch-all route, controller invokable, Old-view toolpage extension	config/module.config.php
Capabilities (melisReactToolCapabilities → melissql_tool → run)	config/react.capabilities.php
Legacy tool + runQuery() guard (reused by the API controller)	src/Controller/ListController.php
React API controller (admin gate + reuse runQuery + mask + JSON-safe)	src/Controller/MelisSqlReactApiController.php
Old-view iframe toolPageAction() quirk	src/Controller/React/PluginViewToolPageExtension.php
React brick source (Vite IIFE)	ui-react/src/ — brick.tsx, SqlPage.tsx, ViewToggle.tsx, sql-api.ts
Built brick + manifest	public/ui-react/brick.js, public/ui-react/brick.manifest.json

See also: MelisCore
